FBS 9-8

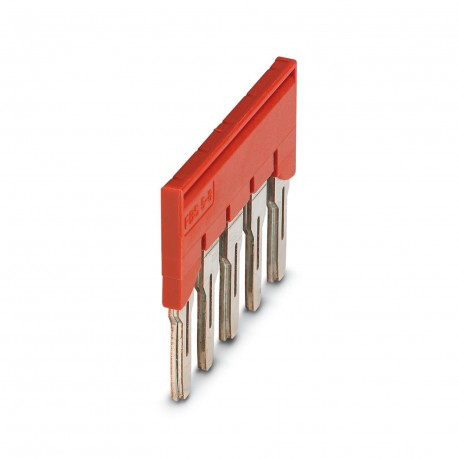

FBS 9-8 3002747 PHOENIX CONTACT Plug-in bridge
$0.00USD
3107 in stock
Key Specifications
Color:red (RAL 3001)
Depth:29.6 mm
Pitch:8.2 mm
Width:72.1 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | red (RAL 3001) |
| Depth | 29.6 mm |
| Pitch | 8.2 mm |
| Width | 72.1 mm |
| Height | 29.6 mm |
| Material | Copper |
| Product type | Jumper |
| Mounting type | Plug-in mounting |
| Article revision | 01 |
| Insulating material | PA |
| Note on application | Version with single- or double-sided cutting edge. Keep in mind the possible impact on touch protection as well as the air clearances and creepage distances. For applications in explosion-proof areas, the voltage reduces to the voltage specified in the Ex certificate for bridges that are cut to length. |
| Number of positions | 9 |
| Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Permissible humidity (operation) | 20 % ... 90 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Product Description
Plug-in bridge, Variant with single or double-sided cutting edge. Be aware of the potential effects on accidental contact protection and leakage lines and air isolation distances. In applications in e
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
