FBS 3-8

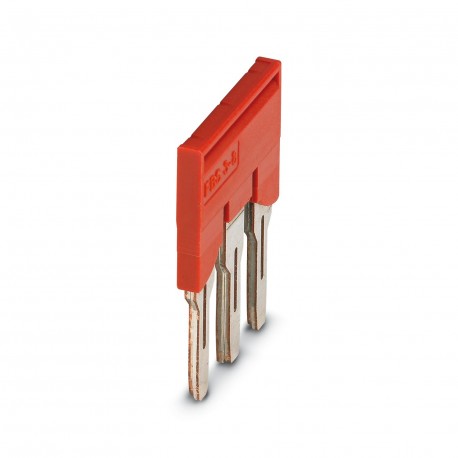

FBS 3-8 3030297 PHOENIX CONTACT Plug-in bridge
$0.83USD
12098 in stock
Key Specifications
Color:red (RAL 3001)
Depth:29.6 mm
Pitch:8.2 mm
Width:22.9 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | red (RAL 3001) |
| Depth | 29.6 mm |
| Pitch | 8.2 mm |
| Width | 22.9 mm |
| Height | 29.6 mm |
| Material | Copper |
| Product type | Jumper |
| Mounting type | Plug-in mounting |
| Article revision | 12 |
| Insulating material | PA |
| Number of positions | 3 |
| Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Permissible humidity (operation) | 20 % ... 90 % |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Product Description
Plug-in bridge, pitch: 8.2 mm, colour: red
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
