In Stock Hot Product
FBS 1/2/8-5

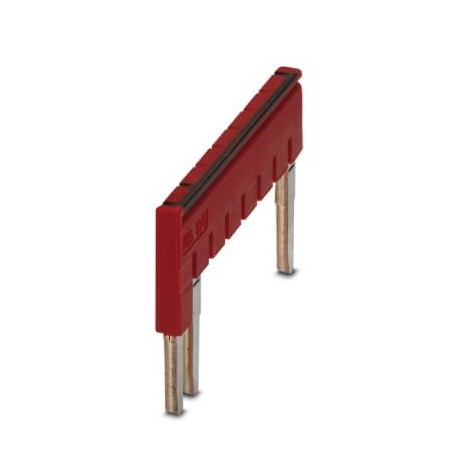

FBS 1/2/8-5 3030371 PHOENIX CONTACT Plug-in bridge
$0.00USD
3592 in stock
Key Specifications
GTIN:4046356706995
Note:Made to Order (non-returnable)
Orderkey:3030371
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356706995 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3030371 |
| Packing unit | 10 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| Minimum order quantity | 10 pc |
| Color (Key Commercial Data) | red |
| Pitch (Key Commercial Data) | 5.2 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Key Commercial Data) | Copper |
| Pin assignment (Key Commercial Data) | 1, 2, 8 |
| Weight per Piece (excluding packing) | 5.000 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of positions (Key Commercial Data) | 8 |
| Maximum load current (Key Commercial Data) | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Flammability rating according to UL 94 (Technical data) | V0 |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
Product Description
Plug-in bridge, Variant with single or double-sided cutting edge. Please note the possible effects on protection against accidental contact, as well as the leakage lines and insulation distances in ai
