FBP 12+1

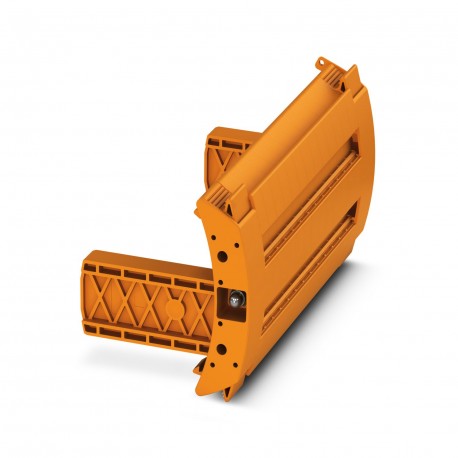

FBP 12+1 3069408 PHOENIX CONTACT Dummy plug
$0.00USD
4423 in stock
Key Specifications
GTIN:4046356749787
Note:Made to Order (non-returnable)
Orderkey:3069408
Catalog page:Page 593 (C-1-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356749787 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3069408 |
| Catalog page | Page 593 (C-1-2017) |
| Packing unit | 5 pc |
| Pitch (General) | 8.2 mm |
| Width (General) | 139.5 mm |
| Length (General) | 72.9 mm |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Key Commercial Data) | 10 mm² / 2 kg |
| Minimum order quantity | 5 pc |
| Color (Key Commercial Data) | orange |
| Setpoint (Key Commercial Data) | 5 N |
| Weight per Piece (excluding packing) | 120.540 g |
| Bending test turns (Key Commercial Data) | 135 |
| Short-time current (Key Commercial Data) | 1250 A |
| Insulating material (Key Commercial Data) | PA |
| Number of positions (Key Commercial Data) | 13 |
| Tensile test result (Key Commercial Data) | Test passed |
| Tight fit on carrier (Key Commercial Data) | Panel cutout |
| Result of bending test (Key Commercial Data) | Test passed |
| Result of thermal test (Key Commercial Data) | Test passed |
| Tractive force setpoint (Key Commercial Data) | 90 N |
| Requirements, voltage drop (Key Commercial Data) | ≤ 3.2 mV |
| Bending test rotation speed (Key Commercial Data) | 10 rpm |
| Result of voltage-drop test (Key Commercial Data) | Test passed |
| Surge voltage test setpoint (Key Commercial Data) | 4.8 kV |
| Result of surge voltage test (Key Commercial Data) | Test passed |
| Flammability rating according to UL 94 (Dimensions) | V0 |
| Result of tight fit on support (Key Commercial Data) | Test passed |
| Short circuit stability result (Key Commercial Data) | Test passed |
| Result of temperature-rise test (Key Commercial Data) | Test passed |
| Conductor cross section tensile test (Key Commercial Data) | 10 mm² |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
| Power frequency withstand voltage setpoint (Key Commercial Data) | 1.89 kV |
| Bending test conductor cross section/weight (Key Commercial Data) | 0.2 mm² / 0.2 kg |
| Conductor cross section short circuit testing (Key Commercial Data) | 4 mm² |
| Result of power-frequency withstand voltage test (Key Commercial Data) | Test passed |
| Proof of thermal characteristics (needle flame) effective duration (Key Commercial Data) | 30 s |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Key Commercial Data) | Test passed |
Product Description
Blind cap, number of poles: 13, color: orange
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
