FBLN/BN-3A

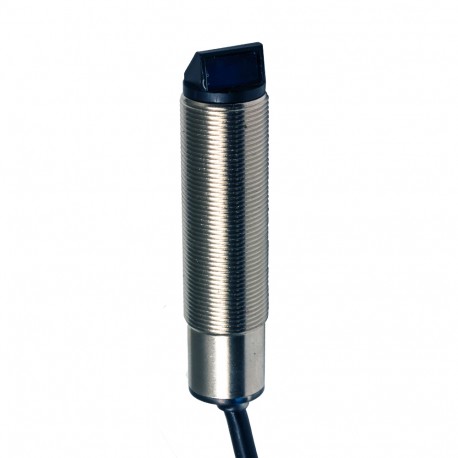

FBLN/BN-3A MICRO DETECTORS Photoelectric sensor 90° laser Retroreflective Polarised 20 m adjustable NPN NO+N..
$0.00USD
3536 in stock
Key Specifications
Weight:110g
Emission:Diodo laser rosso (650nm) classe1 (IEC60825-1)
Approvals:CE, cULus
Dimensions:M18 x 1/L=75,4mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 110g |
| Emission | Diodo laser rosso (650nm) classe1 (IEC60825-1) |
| Approvals | CE, cULus |
| Dimensions | M18 x 1/L=75,4mm |
| Connections | cavo 2 m PVC |
| Output type | NPN |
| Load current | ≤100mA |
| LED indicators | Verde alimentazione/giallo(LightON EG≥2)/lampeggiante (LightON 1 |
| Optic position | Radiale (90°) |
| Leakage current | ≤10μA |
| Output Function | NO+NC |
| Repeat Accuracy | 5% |
| Housing Material | Ottone nichelato PA12 |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 25Nm |
| Function Principle | Polarizzata |
| Max ripple content | 10% |
| Output voltage drop | 2V max. IL =100 mA |
| Switching frequency | 800Hz |
| Thermal drift of Sr | ≤10% Sr |
| Active Head Material | Vetro |
| Degree of protection | IP67 |
| Supplied Accessories | ghiere M18 x 1, cacciavite |
| Operating temperature | - 15°C…+ 55° C (conout freeze) |
| Shocks and vibrations | Vibrazioni IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤30mA |
| Sensitivity adjustment | Teach-in |
| Nominal sensing distance | 20m con RL110 ; 30m con RL201 , 5m con RL100D |
| Short-circuit protection | Cortocircuito (autoripristinante), sovratensioni |
| Reverse Polarity Protection | Inversione della polarità, sovratensione impulsiva |
| Interference to external light | 3000lux (lampada ad incandescenza), 10000lux (luce solare) |
| Time delay before availability | ≤200ms |
