In Stock Hot Product
FBLH/X0-1E

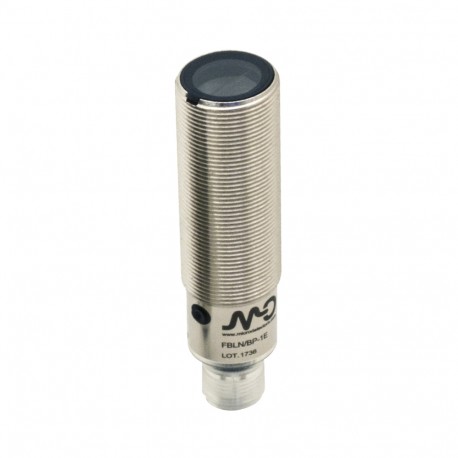

FBLH/X0-1E MICRO DETECTORS Photoelectric sensor Axial laser emitter 50 m Check metallic connector M12
$0.00USD
3822 in stock
Key Specifications
Weight:70g
Emission:Red laser diode (650nm) class1 (IEC60825-1)
Approvals:CE, cULus
Dimensions:M18 x 1 /L =80 mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 70g |
| Emission | Red laser diode (650nm) class1 (IEC60825-1) |
| Approvals | CE, cULus |
| Dimensions | M18 x 1 /L =80 mm |
| Check Input | BK/2 connected to 0Vdc swithing off the emission |
| Connections | M12 Plug |
| LED indicators | Green (power ON) yellow (Emiss. ON) yellow(Emiss. OFF) |
| Optic position | Axial |
| Emitter/Receiver | Emitter |
| Housing Material | Nicked plated brass PA12 |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 25Nm |
| Function Principle | Through beam |
| Max ripple content | 10% |
| Thermal drift of Sr | ≤10% Sr |
| Active Head Material | Glass |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1 |
| Operating temperature | - 15°C…+ 55° C (Without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤25mA |
| Nominal sensing distance | 50m |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Time delay before availability | ≤200ms |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
