FBLD/BP-3E

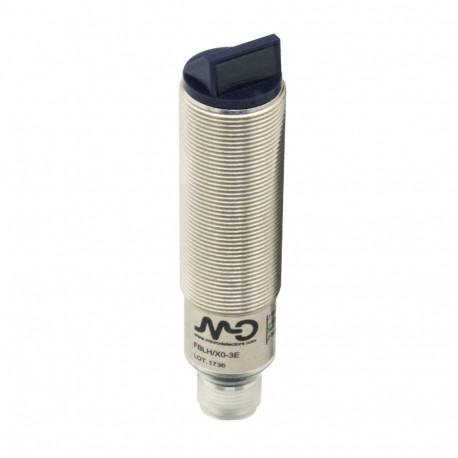

FBLD/BP-3E MICRO DETECTORS Photoelectric sensor 90° laser Receiver 50 m adjustable PNP NO+NC metal. conn. M12
$0.00USD
4149 in stock
Key Specifications
Weight:70g
Emission:Red laser diode (650nm) class1 (IEC60825-1)
Approvals:CE, cULus
Dimensions:M18 x 1/L=89,5mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 70g |
| Emission | Red laser diode (650nm) class1 (IEC60825-1) |
| Approvals | CE, cULus |
| Dimensions | M18 x 1/L=89,5mm |
| Connections | M12 Plug |
| Output type | PNP |
| Load current | ≤100mA |
| LED indicators | Yellow (output state) |
| Optic position | Right angle (90°) |
| Leakage current | ≤10μA |
| Output Function | NO+NC |
| Repeat Accuracy | 5% |
| Emitter/Receiver | Receiver |
| Housing Material | Nicked plated brass PA12 |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 25Nm |
| Function Principle | Through beam |
| Max ripple content | 10% |
| Output voltage drop | 2V max. IL =100 mA |
| Switching frequency | 1kHz |
| Thermal drift of Sr | ≤10% Sr |
| Active Head Material | Glass |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1, screwdriver |
| Operating temperature | - 15°C…+ 55° C (Without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤25mA |
| Sensitivity adjustment | Trimmer |
| Nominal sensing distance | 50m |
| Short-circuit protection | Short circuit (autoreset), Overvoltage |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |
| Time delay before availability | ≤200ms |
