FB-PS-MB-Y/EX

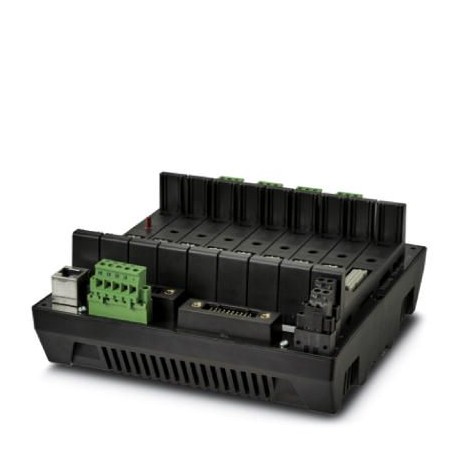

FB-PS-MB-Y/EX 2316148 PHOENIX CONTACT Power supply unit
$0.00USD
3102 in stock
Key Specifications
GTIN:4055626128368
Note:Made to Order (non-returnable)
Orderkey:2316148
Catalog page:Page 517 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626128368 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2316148 |
| Catalog page | Page 517 (C-6-2017) |
| Depth (Note) | 180 mm |
| Packing unit | 1 pc |
| Width (Note) | 180 mm |
| Height (Note) | 77 mm |
| Country of origin | US (United States) |
| (Digital outputs) | EN 61326 |
| Custom tariff number | 85366990 |
| Torque (Power supply) | 0.4 Nm ... 0.5 Nm (AKB336 cable) |
| ATEX (Digital outputs) | Sira 11ATEX4216X; II 3 G Ex nA nC IIC T4 Gc |
| IECEx (Digital outputs) | IECEx SIR 11.0097X; Ex nA nC IIC T4 Gc |
| Interface (Power supply) | Host system |
| Interface 1 (Power supply) | Yokogawa DCS cabling system |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Inductance Li (Power supply) | 17.8 mH (trunk and host) |
| Conformance (Digital outputs) | CE-compliant |
| Designation (Digital outputs) | Standards/regulations |
| Output name (Serial interface) | Alarm |
| Type of test (Digital outputs) | Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3 |
| Net weight (Ambient conditions) | 222.222 g |
| Conformance (Ambient conditions) | CE-compliant |
| Connection method (Power supply) | AKB336 cable |
| CSA, USA/Canada (Digital outputs) | Class I, Div. 2, Groups A, B, C, D; Ex nA nC IIC T4Class I, Zone 2, AEx nA nC IIC T4 |
| Degree of protection (Dimensions) | IP20 |
| Number of connections (Power supply) | 2 |
| Weight per Piece (excluding packing) | 222.220 g |
| Fieldbus Foundation (Digital outputs) | FF-831 |
| Max. output voltage Uo (Power supply) | 30 V DC (trunk and host) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Standards/regulations (Digital outputs) | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Fieldbus Foundation (Ambient conditions) | FF-831 |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 30 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Conductor cross section solid max. (General) | 2.50 mm² |
| Conductor cross section solid min. (General) | 0.20 mm² |
| Permissible humidity (operation) (Dimensions) | 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible max. (General) | 2.50 mm² |
| Conductor cross section flexible min. (General) | 0.20 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
Product Description
Base for redundant four-channel fieldbus power supply. It has host connections for two Yokogawa AKB336 20-pole cables.
