FB-MUX/HS/DAIO/PA

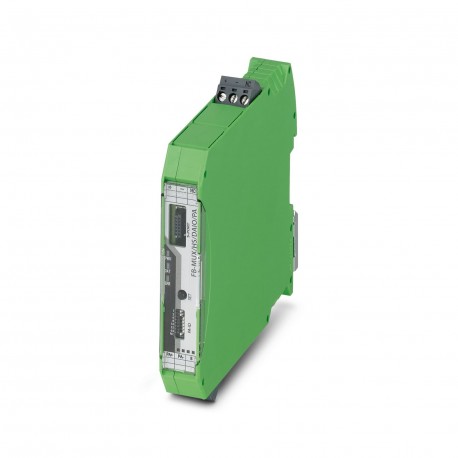

FB-MUX/HS/DAIO/PA 1005329 PHOENIX CONTACT Multiplexer
$0.00USD
4488 in stock
Key Specifications
GTIN:4055626475028
Orderkey:1005329
Depth (Note):99 mm
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626475028 |
| Orderkey | 1005329 |
| Depth (Note) | 99 mm |
| Packing unit | 1 pc |
| Width (Note) | 17.5 mm |
| Height (Note) | 114.5 mm |
| Country of origin | US (United States) |
| Custom tariff number | 85176200 |
| Color (Connection data) | green |
| Screw thread (Power supply) | M3 |
| Maximum altitude (Dimensions) | < 2000 m |
| Stripping length (Power supply) | 7 mm |
| Connection method (Power supply) | Screw connection |
| Degree of protection (Dimensions) | IP20 |
| Housing material (Connection data) | PA 6.6-FR |
| Tightening torque max (Power supply) | 0.6 Nm |
| Weight per Piece (excluding packing) | 182.400 g |
| Degree of pollution (Connection data) | 2 |
| Tightening torque, min (Power supply) | 0.5 Nm |
| Overvoltage category (Connection data) | II |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Supply voltage range (Ambient conditions) | |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 70 °C |
| Permissible humidity (operation) (Dimensions) | 20 % ... 95 % (Non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section AWG max. (Power supply) | 14 |
| Conductor cross section AWG min. (Power supply) | 24 |
| Flammability rating according to UL 94 (General) | V0 |
| Conductor cross section solid max. (Power supply) | 2.5 mm² |
| Conductor cross section solid min. (Power supply) | 0.2 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible max. (Power supply) | 2.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Flammability rating according to UL 94 (Connection data) | V0 |
Product Description
The FB-MUX/HS/DAIO/PA headend station can be used with up to three 6-channel analogue-digital I/O (RAD-DAIO6-IFS) modules. This configuration can be used as a combined analogue-digital I/O solution.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
