FB-HSC

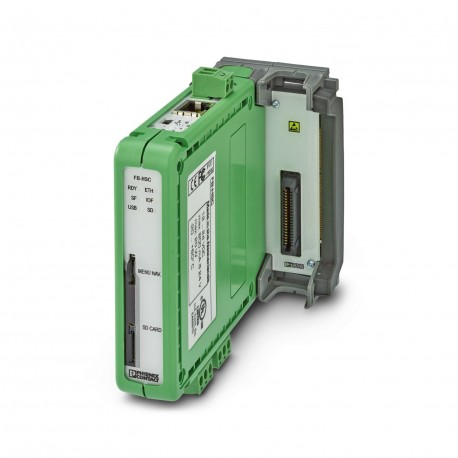

FB-HSC 2316371 PHOENIX CONTACT Converter
$0.00USD
3042 in stock
Key Specifications
GTIN:4055626020464
Note:Made to Order (non-returnable)
Orderkey:2316371
Catalog page:Page 515 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626020464 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2316371 |
| Catalog page | Page 515 (C-6-2017) |
| Packing unit | 1 pc |
| Custom tariff number | 85371098 |
| Interface (Power supply) | 10/100 Mbps Ethernet |
| Color (Ambient conditions) | green |
| Interface 1 (Power supply) | Ethernet |
| Depth (Key Commercial Data) | 132 mm |
| No. of ports (Power supply) | 1 |
| Width (Key Commercial Data) | 25 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 100 mm |
| UL, Canada (Serial interface) | CSA C22.2 No. 142 |
| Designation (Serial interface) | PROFIBUS standardization |
| Supply voltage range (General) | 10.8 V DC ... 26.4 V DC |
| Net weight (Ambient conditions) | 222 g |
| UL, Canada (Ambient conditions) | CSA C22.2 No. 142 |
| Connection method (Power supply) | RJ45 |
| Degree of protection (Dimensions) | IP20 |
| UL, USA/Canada (Serial interface) | UL 508 Listed |
| Max. current consumption (General) | 800 mA |
| UL, USA/Canada (Ambient conditions) | UL 508 Listed |
| Weight per Piece (excluding packing) | 222.000 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Standards/regulations (Serial interface) | IEC 61158-2 |
| Dimensional drawing (Key Commercial Data) | |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Conductor cross section solid max. (General) | 2.50 mm² |
| Conductor cross section solid min. (General) | 0.20 mm² |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Conductor cross section AWG max. (Power supply) | 12 |
| Conductor cross section AWG min. (Power supply) | 24 |
| Conductor cross section flexible max. (General) | 2.50 mm² |
| Conductor cross section flexible min. (General) | 0.20 mm² |
| Conductor cross section solid max. (Power supply) | 2.5 mm² |
| Conductor cross section solid min. (Power supply) | 0.2 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -20 °C ... 60 °C |
| Conductor cross section flexible max. (Power supply) | 2.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % (non-condensing) |
Product Description
Headend station for monitoring up to four PROFIBUS networks
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
