FB-8SP ISO

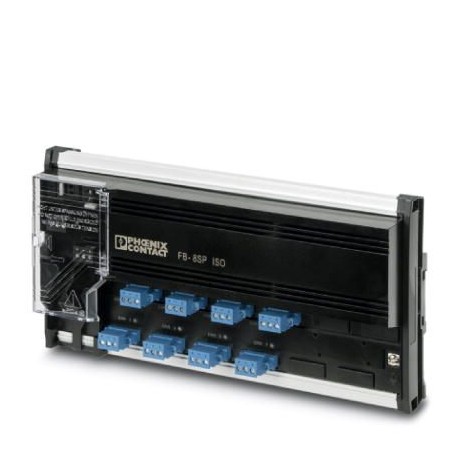

FB-8SP ISO 2316311 PHOENIX CONTACT Device coupler
$0.00USD
3443 in stock
Key Specifications
GTIN:4055626306803
Orderkey:2316311
(General):350 mA (maximum trunk current)
Catalog page:Page 514 (C-6-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626306803 |
| Orderkey | 2316311 |
| (General) | 350 mA (maximum trunk current) |
| Catalog page | Page 514 (C-6-2017) |
| Depth (Note) | 66 mm |
| Packing unit | 1 pc |
| Width (Note) | 279 mm |
| (Dimensions) | IP20, IP30 over trunk connections |
| Height (Note) | 142 mm |
| (Safety data) | IIB |
| Country of origin | US (United States) |
| ATEX (Safety data) | DEMKO 16ATEX 1689XII 2(1) G Ex eb ib mb [ia Ga] IIC T4 GbII (1D) [Ex ia Da] IIICFISCO power supply (spur) |
| Group (Safety data) | IIC |
| IECEx (Safety data) | IECEx UL 16.0114XEx eb ib mb [ia Ga] IIC T4 Gb[Ex ia Da] IIICFISCO power supply (spur) |
| Shock (Safety data) | 15g for 11 ms |
| Custom tariff number | 85389099 |
| (Ambient conditions) | ATEX 2014/34/EU |
| ATEX (Serial interface) | DEMKO 16ATEX 1689XII 2(1) G Ex eb ib mb [ia Ga] IIC T4 GbII (1D) [Ex ia Da] IIICFISCO power supply (spur) |
| Group (Serial interface) | IIB |
| IECEx (Serial interface) | IECEx UL 16.0114XEx eb ib mb [ia Ga] IIC T4 Gb[Ex ia Da] IIICFISCO power supply (spur) |
| Conformance (Safety data) | EMC 2014/30/EU |
| Designation (Safety data) | Standards/regulations |
| Dimensional drawing (Note) | |
| Interface 1 (Power supply) | Foundation Fieldbus and PROFIBUS PA Segment |
| Type of test (Safety data) | Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3 |
| No. of ports (Power supply) | 8 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Inductance Li (Power supply) | 0 µH |
| UL, USA/Canada (Safety data) | Install in Class I, Div. 2, Groups A, B, C, DEntity/FISCO spur to: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; Group IIICClass I, Zone 1 AEx eb ib mb [ia Ga] IIC T4 Gb[AEx ia Da] IIICFISCO power supply (spur)Ex eb ib mb [ia Ga] IIC T4 Gb[Ex ia Da] IIICFISCO power supply (spur) |
| Output current (Power supply) | 35 mA (per spur) |
| Supply voltage range (General) | 16 V DC ... 32 V DC (input on trunk line side) |
| Net weight (Ambient conditions) | 1190 g |
| Conformance (Ambient conditions) | EMC 2014/30/EU |
| Connection method (Power supply) | Pluggable COMBICON screw connection for each spur |
| Degree of protection (Dimensions) | IP20 |
| Fieldbus Foundation (Safety data) | FF-846 |
| Max. current consumption (General) | 35 mA (trunk, no load) |
| Input voltage Ui (Serial interface) | 32 V |
| Standards/regulations (Safety data) | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Termination resistor (Power supply) | Integrated termination, activated with bridge located in correct terminals |
| Vibration (operation) (Safety data) | 2g, 10 Hz ... 150 Hz |
| Weight per Piece (excluding packing) | 1,190.000 g |
| Max. output voltage Uo (Power supply) | 16.7 V |
| Output nominal voltage (Power supply) | ≤ 14 V (each spur) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | On horizontal and vertical DIN rail NS 35 in acc. with EN 60715 |
| Max. output power Po (Serial interface) | 1.05 W |
| Degree of pollution (Ambient conditions) | 2 |
| Fieldbus Foundation (Ambient conditions) | FF-846 |
| Max. output current Io (Serial interface) | 250 mA |
| Max. output voltage Uo (Serial interface) | 16.7 V |
| Overvoltage category (Ambient conditions) | II |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| Conductor cross section solid max. (General) | 0.20 mm² |
| Conductor cross section solid min. (General) | 2.50 mm² |
| Max. external capacity Co (Serial interface) | 2.33 µF |
| Permissible humidity (operation) (Dimensions) | 95 % (non-condensing) |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section AWG max. (Power supply) | 12 |
| Conductor cross section AWG min. (Power supply) | 24 |
| Conductor cross section flexible max. (General) | 0.20 mm² |
| Conductor cross section flexible min. (General) | 2.50 mm² |
| Max. external inductivity Lo (Serial interface) | 2.27 mH |
| Conductor cross section solid max. (Power supply) | 2.5 mm² |
| Conductor cross section solid min. (Power supply) | 0.2 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible max. (Power supply) | 2.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Flammability rating according to UL 94 (Safety data) | V0 |
| Max. AWG conductor cross section, flexible (General) | 12 |
| Min. AWG conductor cross section, flexible (General) | 24 |
| Safety-related maximum voltage Um (Serial interface) | 253 V |
Product Description
Device coupler in Zone 1 environment for FOUNDATION Fieldbus and PROFIBUS PA with terminal connections for eight branch outlets for fieldbus terminal equipment.
