FB-12SP

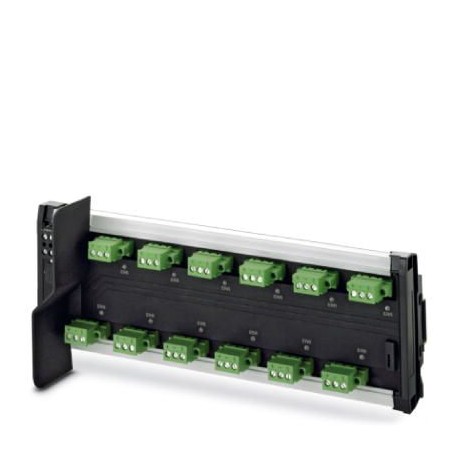

FB-12SP 2316310 PHOENIX CONTACT Device coupler
$0.00USD
4751 in stock
Key Specifications
GTIN:4046356883597
Orderkey:2316310
Catalog page:Page 514 (C-6-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356883597 |
| Orderkey | 2316310 |
| Catalog page | Page 514 (C-6-2017) |
| Packing unit | 1 pc |
| (Safety data) | IIC/IIB |
| (Power supply) | 100 Ω, external removable plug included |
| Country of origin | US (United States) |
| ATEX (Safety data) | Sira 13ATEX4247X; II 3(3)GEx nA [ic] IIC T4 Gc, Entity/FISCO ic spursEx nA [nL] IIC T4 Gc; II 3G Ex ic IIC T4 Gc, FISCO ic |
| Group (Safety data) | IIC/IIB |
| IECEx (Safety data) | IECEx SIR 13.0089X; Ex nA [ic] IIC T4 Gc, Entity/FISCO ic spurs;Ex nA [nL] IIC T4 Gc; Ex ic IIC T4 Gc, FISCO ic |
| Shock (Safety data) | 30g, 11 ms |
| Custom tariff number | 85369095 |
| Altitude (Dimensions) | 2000 m |
| UL, USA (Safety data) | Class I, Zone 2; AEx nA[ic] IIC T4, Entity/FISCO spursClass I, Div. 2, Groups A, B, C, D; T4 |
| ATEX (Serial interface) | Sira 13ATEX4247X; II 3(3)GEx nA [ic] IIC T4 Gc, Entity/FISCO ic spursEx nA [nL] IIC T4 Gc; II 3G Ex ic IIC T4 Gc, FISCO ic |
| Group (Serial interface) | IIC/IIB |
| IECEx (Serial interface) | IECEx SIR 13.0089X; Ex nA [ic] IIC T4 Gc, Entity/FISCO ic spurs;Ex nA [nL] IIC T4 Gc; Ex ic IIC T4 Gc, FISCO ic |
| Conformance (Safety data) | CE-compliant, additionally EN 61326 |
| Designation (Safety data) | Standards/regulations |
| MTTF (Ambient conditions) | 723 Years (25 degrees C) |
| Interface 1 (Power supply) | Foundation Fieldbus and PROFIBUS PA Segment |
| Type of test (Safety data) | Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3 |
| UL, USA (Serial interface) | Class I, Zone 2; AEx nA[ic] IIC T4, Entity/FISCO spursClass I, Div. 2, Groups A, B, C, D; T4 |
| Depth (Key Commercial Data) | 83.5 mm |
| No. of ports (Power supply) | 12 |
| Width (Key Commercial Data) | 254.1 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 112.5 mm |
| Inductance Li (Power supply) | 4 µH |
| CSA, USA/Canada (Safety data) | Class I, Div. 2, Groups A, B, C, D;Ex nA [nL] IIC T4; Class I, Zone 2, AEx nA [nC] IIC T4 |
| Caption (Key Commercial Data) | FB-12SP dimensions |
| Output current (Power supply) | 38 mA |
| Supply voltage range (General) | 10.5 V DC ... 32 V DC (input on trunk line side) |
| Net weight (Ambient conditions) | 502.4 g |
| Conformance (Ambient conditions) | CE-compliant, additionally EN 61326 |
| Connection method (Power supply) | Pluggable COMBICON screw connection for each spur |
| Degree of protection (Dimensions) | IP20 |
| Fieldbus Foundation (Safety data) | FF-846 |
| Additional text (Serial interface) | spur |
| CSA, USA/Canada (Serial interface) | Class I, Div. 2, Groups A, B, C, D;Ex nA [nL] IIC T4; Class I, Zone 2, AEx nA [nC] IIC T4 |
| Input voltage Ui (Serial interface) | 32 V (IIB (C/D)) |
| Standards/regulations (Safety data) | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Termination resistor (Power supply) | 100 Ω (external removable plug) |
| Vibration (operation) (Safety data) | 5g, 10 Hz ... 150 Hz |
| Weight per Piece (excluding packing) | 502.400 g |
| Max. output voltage Uo (Power supply) | Uin(spur) |
| Output nominal voltage (Power supply) | ≤ 32 V (each spur) |
| Typical current consumption (General) | 6.5 mA |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Mounting position (Ambient conditions) | On horizontal and vertical DIN rail NS 35 in acc. with EN 60715 |
| Max. output power Po (Serial interface) | 1.792 W |
| Fieldbus Foundation (Ambient conditions) | FF-846 |
| Dimensional drawing (Key Commercial Data) | |
| Max. output current Io (Serial interface) | 56 mA (spur) |
| Max. output voltage Uo (Serial interface) | Uin(spur) |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Ambient temperature (operation) (Dimensions) | -50 °C ... 90 °C |
| Conductor cross section solid max. (General) | 0.20 mm² |
| Conductor cross section solid min. (General) | 2.50 mm² |
| Max. external capacity Co (Serial interface) | 80 nF |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Conductor cross section AWG max. (Power supply) | 12 |
| Conductor cross section AWG min. (Power supply) | 24 |
| Conductor cross section flexible max. (General) | 0.20 mm² |
| Conductor cross section flexible min. (General) | 2.50 mm² |
| Max. external inductivity Lo (Serial interface) | 0.26 mH |
| Conductor cross section solid max. (Power supply) | 2.5 mm² |
| Conductor cross section solid min. (Power supply) | 0.2 mm² |
| Ambient temperature (storage/transport) (Dimensions) | -50 °C ... 90 °C |
| Conductor cross section flexible max. (Power supply) | 2.5 mm² |
| Conductor cross section flexible min. (Power supply) | 0.2 mm² |
| Flammability rating according to UL 94 (Safety data) | V0 |
| Max. AWG conductor cross section, flexible (General) | 12 |
| Min. AWG conductor cross section, flexible (General) | 24 |
| Permissible humidity (storage/transport) (Dimensions) | non-condensing |
Product Description
Equipment coupler for Foundation Fieldbus and PROFIBUS PA with tightening connections for 12 splice taps with fieldbus terminal equipment.
