FAZ-C25/2

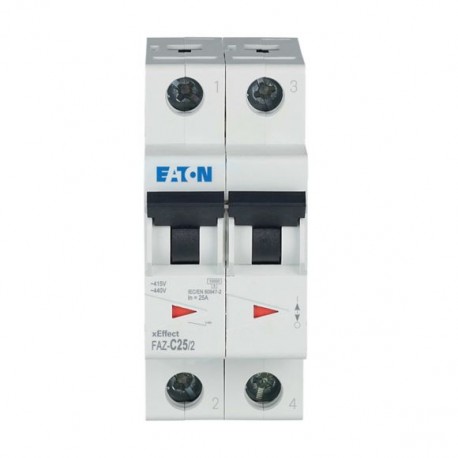

FAZ-C25/2 278762 Y7-278762 EATON ELECTRIC Over current switch, 25A, 2p, C-Char, AC
$0.00USD
3366 in stock
Key Specifications
Feature Name:Feature Value
Frequency (EF000416):50 Hz
Power loss (EF005387):6 W
Voltage type (EF000187):AC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Frequency (EF000416) | 50 Hz |
| Power loss (EF005387) | 6 W |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 25 A |
| Rated voltage (EF000228) | 400 V |
| Built-in depth (EF000218) | 70.5 mm |
| Explosion-proof (EF004663) | No |
| Pollution degree (EF002570) | 2 |
| Over voltage category (EF002569) | 3 |
| Current limiting class (EF002568) | 3 |
| Release characteristic (EF000889) | C |
| Number of poles (total) (EF008618) | 2 |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of protected poles (EF005548) | 2 |
| Flush-mounted installation (EF007517) | No |
| Rated insulation voltage Ui (EF001366) | 440 V |
| Additional equipment possible (EF008148) | Yes |
| Width in number of modular spacings (EF002950) | 2 |
| Ambient temperature during operating (EF007515) | -25 °C |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Concurrently switching neutral conductor (EF005997) | No |
| Connectable conductor cross section solid-core (EF007337) | 1 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1 mm² |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 15 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) | 15 kA |
Product Description
FAZ-C25/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
