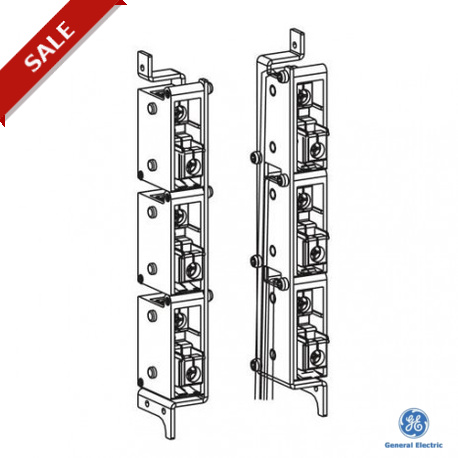

FAS33W - FAS33W 432610 GENERAL ELECTRIC FE/FG-Drawout Position indication contact set 3 NO/3NC
In Stock Hot Product

FAS33W

FAS33W 432610 GENERAL ELECTRIC FE/FG-Drawout Position indication contact set 3 NO/3NC

$0.00USD
3309 in stock
Key Specifications
Status:Active
ETIM 5.0 (DIMENSIONS):EC000041
ETIM 6.0 (DIMENSIONS):EC000041
Weight (SPECIFICATIONS):0.0090 kg
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support

Technical Specifications

ParameterValue
StatusActive
ETIM 5.0 (DIMENSIONS)EC000041
ETIM 6.0 (DIMENSIONS)EC000041
Weight (SPECIFICATIONS)0.0090 kg
Range (ORDER/DELIVERY STATUS)Internal accessories
Series (ORDER/DELIVERY STATUS)Accessories
Frame type (ORDER/DELIVERY STATUS)E frame - G frame
Number of poles (ORDER/DELIVERY STATUS)3P / 4P
Accessory Detail (ORDER/DELIVERY STATUS)CO Drawout position indicator
Standard packing (ORDER/DELIVERY STATUS)1
Type of Accessory (ORDER/DELIVERY STATUS)Auxiliary Contacts

Product Description

More details
Key Features
  • Industrial grade quality
  • RoHS compliant
  • CE certified
  • 1-year warranty

Technical Details

Auxiliary contactsAuxiliary contact blocks are conveniently fitted into an auxiliary-device compartment, accessible by removing the breaker cover. This fully insulated compartment has several pouches, a number of which are reserved for contact blocks. To allow for a logical and traceable schematics each contact block has a pre-defined position within the auxiliary device compartment indicated by a symbol printed both on the breaker case and on the auxiliary device itself. External wiring can be brought into the accessory compartment through - specifically designed and positioned - break-out openings in the breaker lid or can go through channels in the breaker rear. Once this is done the wiring can be stripped an easily connected to the box terminals on the internal accessories. These terminals are designed to connect wiring up to 2,5 mm².To identify the correct mounting position within the accessory compartment symbols are moulded into the breaker and contact housing. For auxiliary switches suited for mounting on the right and on the left. For Bell alarm switches; Mechanism operated types and Trip unit operated types.

Product Documents

Datasheet

Technical specifications and performance data

User Manual

Installation and operation guide
