In Stock Hot Product
FARS/BP-0A

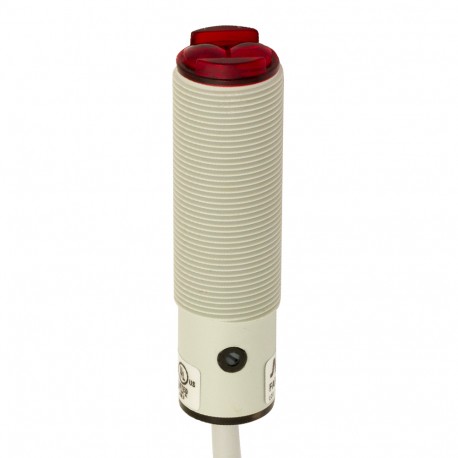

FARS/BP-0A MICRO DETECTORS Photoelectric sensor Axial BGS 30-130 mm, adjustment PNP NO+NC plastic cable 2m a..
$0.00USD
4880 in stock
Key Specifications
Weight:50g
Emission:Red (660 nm)
Approvals:CE, cULus
Dimensions:M18 x 1/L=65,5mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 50g |
| Emission | Red (660 nm) |
| Approvals | CE, cULus |
| Dimensions | M18 x 1/L=65,5mm |
| Connections | 2m PVC cable |
| Output type | PNP |
| Load current | ≤100mA |
| LED indicators | Yellow (output state) |
| Optic position | Axial |
| Leakage current | ≤10μA |
| Output Function | NO+NC |
| Repeat Accuracy | 5% |
| Housing Material | PBT |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 1Nm |
| Function Principle | Background suppression |
| Max ripple content | 10% |
| Output voltage drop | 2V max. IL =100 mA |
| Switching frequency | 1KHz |
| Thermal drift of Sr | ≤10% Sr, ≤3% Sr @ Sd > 60mm, < 110 mm |
| Active Head Material | PMMA |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1, screwdriver |
| Operating temperature | - 25°C…+ 70° C (Without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤25mA |
| Sensitivity adjustment | Trimmer |
| Nominal sensing distance | 30..130mm with white target 100 x 100mm |
| Short-circuit protection | Short circuit (autoreset) |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |
| Time delay before availability | ≤200ms |
Product Description
FARS/BP-0A Photoelectric sensor Axial BGS 30-130 mm adj.PNP NO+NC plast. cable 2m axial
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
