FALN/BN-2E

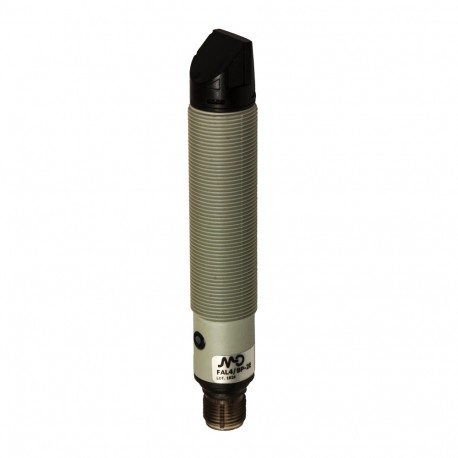

FALN/BN-2E MICRO DETECTORS Photoelectric sensor 90° laser Retroreflective polarised 20 m, adjustment NPN NO+..
$0.00USD
4258 in stock
Key Specifications
Weight:30g
Emission:Diode red laser (650nm) class 1 (IEC60825-1)
Dimensions:M18 x 1/L=92,7 mm
Connections:Connector M12 4 pins
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 30g |
| Emission | Diode red laser (650nm) class 1 (IEC60825-1) |
| Dimensions | M18 x 1/L=92,7 mm |
| Connections | Connector M12 4 pins |
| Output type | NPN |
| Load current | ≤100mA |
| Exit function | NA+NC |
| Nominal range | 20m with RL110 ; 30m with RL201 , 5m with RL100D |
| Position lens | Radial (90°) |
| Repeatability | 5% |
| Thermal drift | ≤10% Sr |
| body material | PBT |
| Certifications | CE, cULus |
| LED indicators | Green food/yellow (LightON EG≥2)/blinks (LightON 1 |
| Supply voltage | 10-30Vdc |
| Leakage current | ≤10µA |
| Tightening torque | 1Nm |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Switching frequency | 800Hz |
| Accessories included | 1 x nut M18, screwdriver |
| Degree of protection | IP67 |
| Operating temperature | - 15°C...+ 55° C (without freezing) |
| Principle of operation | Polarized |
| Sensitivity adjustment | Auto-tuning |
| Maximum residual ripple | 10% |
| Protection short circuit | Short circuit (auto reset), overvoltage |
| Delay to the availability | ≤200ms |
| Immunity to ambient light | 3000lux (incandescent lamp), 10000lux (sunlight) |
| Voltage drop to the output | 2V max. IL =100 mA |
| Protection polarity reversal | Polarity reversal, impulse surge |
| Electromagnetic compatibility | According to en 60947-5-2 |
| Material of the active surface | glass |
| Absorption of current in the vacuum | ≤30mA |
Product Description
FALN/BN-2E Photoelectric sensor 90° laser Retroreflective Polarised 20 m adj.NPN NO+NC plast. conn. M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
