FAIC/BN-0A

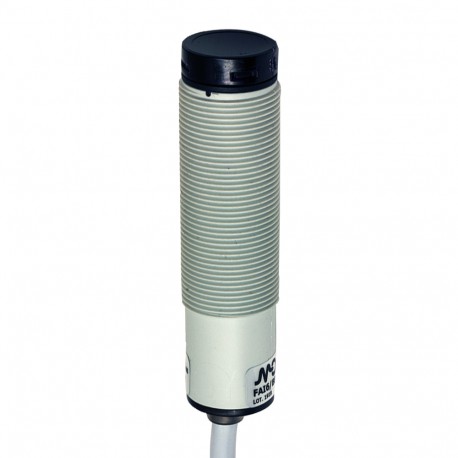

FAIC/BN-0A MICRO DETECTORS Photoelectric sensor Axial Retroreflective 4 m NPN NO+NC plastic cable 2m axial
$0.00USD
3966 in stock
Key Specifications
Weight:100g
Emission:Infrared (880 nm)
Approvals:CE, cULus
Dimensions:M18 x 1/L=67,5mm
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 100g |
| Emission | Infrared (880 nm) |
| Approvals | CE, cULus |
| Dimensions | M18 x 1/L=67,5mm |
| Connections | 2m PVC cable |
| Output type | NPN |
| Load current | ≤100mA |
| LED indicators | Yellow (Lon) or output status Lo/Do |
| Optic position | Axial |
| Leakage current | ≤10μA |
| Output Function | NO+NC |
| Repeat Accuracy | 5% |
| Housing Material | PBT |
| EMC compatibility | EN 60947-5-2 |
| Operating Voltage | 10-30Vdc |
| Tightening torque | 1Nm |
| Function Principle | Retroreflective |
| Max ripple content | 10% |
| Output voltage drop | 2V max. IL =100 mA |
| Switching frequency | 250Hz |
| Thermal drift of Sr | ≤10% Sr |
| Active Head Material | PC |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1 |
| Operating temperature | - 25°C…+ 70° C (Without freeze) |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| No-Load supply current | ≤30mA |
| Sensitivity adjustment | No |
| Nominal sensing distance | 5m with RL110 |
| Short-circuit protection | Short circuit (autoreset), Overvoltage |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Interference to external light | 5000lux (incandescent lamp), 10000lux (sunlight) |
| Time delay before availability | ≤200ms |
