FA MCR-FD-TUI-UI-2REL-UP

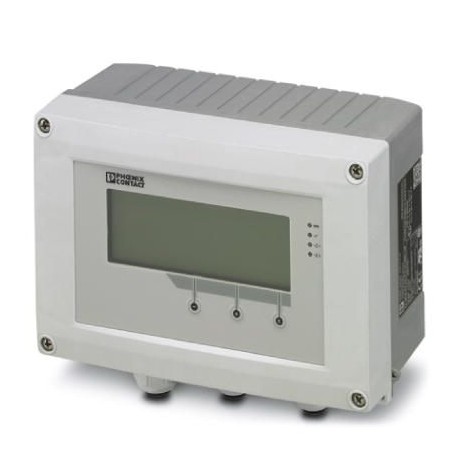

FA MCR-FD-TUI-UI-2REL-UP 2907780 PHOENIX CONTACT Digital display
$0.00USD
3859 in stock
Key Specifications
GTIN:4055626232140
Orderkey:2907780
Catalog page:Page 181 (C-5-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626232140 |
| Orderkey | 2907780 |
| Catalog page | Page 181 (C-5-2017) |
| Packing unit | 1 pc |
| (Input data) | 1 V ... 5 V |
| CSA (General) | CSA GP |
| (Output data) | 200 mA |
| Country of origin | DE (Germany) |
| CSA (Power supply) | CSA GP |
| Ripple (Input data) | < 10 mVPP(1000 Ω) |
| Custom tariff number | 90291000 |
| (Ambient conditions) | -100 mV ... 100 mV |
| Conformance (General) | CE-compliant |
| Noise emission (General) | IEC 61326, class A |
| Noise immunity (General) | IEC 61326 / NAMUR NE 21 |
| Output name (Input data) | Voltage output |
| UL, USA/Canada (General) | UL 61010 Recognized |
| Output name (Output data) | Transistor output, active |
| Conformance (Power supply) | CE-compliant |
| Contact type (Output data) | Transistor |
| D/A resolution (Input data) | 13 bit |
| Depth (Key Commercial Data) | 96 mm |
| Test voltage (Power supply) | 2500 V |
| Width (Key Commercial Data) | 199 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 160 mm |
| Maximum altitude (Dimensions) | < 2000 m (Above sea level) |
| Noise emission (Power supply) | IEC 61326, class A |
| Noise immunity (Power supply) | IEC 61326 / NAMUR NE 21 |
| UL, USA/Canada (Power supply) | UL 61010 Recognized |
| Number of outputs (Input data) | 1 |
| Housing material (Power supply) | PBT GF30 |
| Number of outputs (Output data) | 1 |
| Protection class (Power supply) | II |
| Max. output current (Input data) | < 22 mA |
| Max. output voltage (Input data) | < 11 V |
| Mounting position (Power supply) | Max. viewing angle range +/- 45° from the centre line of the display in every direction |
| Output description (Output data) | Open collector output |
| Degree of protection (Dimensions) | IP67 |
| Input signal (Ambient conditions) | Voltage |
| Current output signal (Input data) | 0 mA ... 20 mA |
| Degree of pollution (Power supply) | 2 |
| Voltage output signal (Input data) | 0 V ... 10 V |
| Overvoltage category (Power supply) | II |
| Max. switching current (Output data) | 3 A |
| Min. switching current (Output data) | 10 mA |
| Power consumption (Switching output) | ≤ 6.9 W |
| Weight per Piece (excluding packing) | 1,439.100 g |
| Number of inputs (Ambient conditions) | 1 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Configurable/programmable (Input data) | Yes |
| Max. input current (Ambient conditions) | < 150 mA |
| Maximum switching voltage (Output data) | 28 V |
| Minimum switching voltage (Output data) | 12 V |
| Supply voltage range (Switching output) | 24 V AC/DC ... 230 V AC/DC (-20 % ... +10 %, 50 Hz ... 60 Hz) |
| max. input voltage (Ambient conditions) | ± 35 V (≥ 1 V) |
| Test voltage input/output (Power supply) | 500 V |
| Current input signal (Ambient conditions) | 0 mA ... 20 mA +10 % |
| Voltage input signal (Ambient conditions) | 0 V ... 10 V |
| Connection technology (Ambient conditions) | 2, 3, 4-wire |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 50 °C (The readability of the display is no longer guaranteed at temperatures below -30 °C (-22 °F).) |
| Available input sources (Ambient conditions) | Thermocouples |
| Load/output load current output (Input data) | ≤ 500 Ω (22 mA) |
| Description of the input (Ambient conditions) | Universal input |
| Test voltage input/power supply (Power supply) | 2500 V |
| Test voltage output/power supply (Power supply) | 2500 V |
| Transmitter supply current (Ambient conditions) | < 30 mA (Short-circuit and overload protection) |
| Transmitter supply voltage (Ambient conditions) | > 16 V (22 mA) |
| Input resistance current input (Ambient conditions) | 10 Ω |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Transmitter supply voltage range (Ambient conditions) | 22.8 V ... 27.6 V (No-load) |
| Input resistance of voltage input (Ambient conditions) | > 1 MΩ |
| Sensor types that can be used (TC) (Ambient conditions) | J, K, T, N, B, S, R, U. L, C, D |
| Sensor types (RTD) that can be used (Ambient conditions) | Pt, Ni, Cu sensors |
Product Description
Multifunctional process indicator in the field box for monitoring and displaying analog measured values. Universal inputs allow connection of current, voltage, RTDs, and thermocouples. 2 switched cont
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
