F3SJ-A1631P14 - F3SJ-A1631P14 F3SJ0080R 241850 OMRON Class IV Advanced Finger L 1631mm Serial Connection
In Stock Hot Product

F3SJ-A1631P14

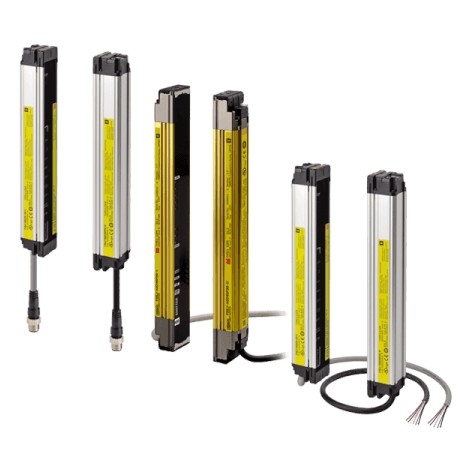

F3SJ-A1631P14 F3SJ0080R 241850 OMRON Class IV Advanced Finger L 1631mm Serial Connection

$8,538.27USD
34 in stock
Key Specifications
1,631 (F3SJ-A____P14/P30):180
Model (F3SJ-A____P14/P30):Protected height (mm)
Material (F3SJ-A____P14/P30):Casing (including metal parts on both ends): Aluminum, zinc die-castCap: ABS resin, Optical cover: PMMA resin (acrylic), Cable: Oil resistant PVC
Receiver (F3SJ-A____P14/P30):Light intensity level indicators (green LED × 2, orange LED × 3): ON based on the light intensityError mode indicators (red LED × 3): Blink to indicate error detailsOFF output indicator (red LED × 1): ON when safety output is OFF, blinks at lockout.ON output indicator (green LED × 1): ON while safety output is ONMuting error indicator, Blanking/test indicator (green LED × 2): ON/flash according to function
Supplier Information
OMRON
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support

Technical Specifications

ParameterValue
1,631 (F3SJ-A____P14/P30)180
Model (F3SJ-A____P14/P30)Protected height (mm)
Material (F3SJ-A____P14/P30)Casing (including metal parts on both ends): Aluminum, zinc die-castCap: ABS resin, Optical cover: PMMA resin (acrylic), Cable: Oil resistant PVC
Receiver (F3SJ-A____P14/P30)Light intensity level indicators (green LED × 2, orange LED × 3): ON based on the light intensityError mode indicators (red LED × 3): Blink to indicate error detailsOFF output indicator (red LED × 1): ON when safety output is OFF, blinks at lockout.ON output indicator (green LED × 1): ON while safety output is ONMuting error indicator, Blanking/test indicator (green LED × 2): ON/flash according to function
Condition (F3SJ-A____P14/P30)1 set
Indicator (F3SJ-A____P14/P30)Emitter
281 to 389 (F3SJ-A____P14/P30)30 to 42
407 to 497 (F3SJ-A____P14/P30)44 to 54
420 to 720 (F3SJ-A____P14/P30)17 to 29
515 to 605 (F3SJ-A____P14/P30)56 to 66
623 to 731 (F3SJ-A____P14/P30)68 to 80
767 to 983 (F3SJ-A____P14/P30)84 to 108
Accessories (F3SJ-A____P14/P30)Test rod (*1), instruction manual, standard mounting bracket (F39-LJ1 bracket for top/bottom mounting), mounting brackets (intermediate) (*2), error mode label, User's Manual (CD-ROM)*1. The F3SJ-A☐☐☐☐55 is not included.*2. Number of intermediate brackets depends on protective height of F3SJ.For protective height from 600 to 1,130 mm : 1 set for each of the emitter and receiver is includedFor protective height from 1,136 to 1,658 mm: 2 sets for each of the emitter and receiver are includedFor protective height from 1,660 to 2,180 mm : 3 sets for each of the emitter and receiver are includedFor protective height from 2,195 to 2,500 mm : 4 sets for each of the emitter and receiver are included
745 to 1,045 (F3SJ-A____P14/P30)30 to 42
Input voltage (F3SJ-A____P14/P30)Test input, interlock selection input, reset input, and muting input are allON voltage: 9 to 24 V (Vs) (sink current: 3 mA max.), OFF voltage: 0 to 1.5 V, or openExternal device monitoring inputON voltage: 9 to 24 V (Vs) (sink current: 5 mA max.), OFF voltage: 0 to 1.5 V, or open
Test function (F3SJ-A____P14/P30)Self test (at power-ON and at power distribution)External test (emission stop function by test input)
1,055 to 1,271 (F3SJ-A____P14/P30)116 to 140
1,070 to 1,295 (F3SJ-A____P14/P30)43 to 52
1,343 to 1,559 (F3SJ-A____P14/P30)148 to 172
1,395 to 1,620 (F3SJ-A____P14/P30)56 to 65
1,745 to 1,995 (F3SJ-A____P14/P30)70 to 80
2,120 to 2,495 (F3SJ-A____P14/P30)85 to 100
10 (Specifications & ordering info)245
12 (Specifications & ordering info)295
16 (Specifications & ordering info)395
19 (Specifications & ordering info)470
21 (Specifications & ordering info)520
22 (Specifications & ordering info)545
23 (Specifications & ordering info)570
25 (Specifications & ordering info)620
26 (Specifications & ordering info)245
28 (Specifications & ordering info)263
29 (Specifications & ordering info)720
32 (Specifications & ordering info)795
34 (Specifications & ordering info)317
35 (Specifications & ordering info)870
37 (Specifications & ordering info)920
38 (Specifications & ordering info)945
41 (Specifications & ordering info)1,020
42 (Specifications & ordering info)389
44 (Specifications & ordering info)1,095
45 (Specifications & ordering info)1,120
48 (Specifications & ordering info)1,195
50 (Specifications & ordering info)461
51 (Specifications & ordering info)1,270
56 (Specifications & ordering info)1,395
60 (Specifications & ordering info)551
65 (Specifications & ordering info)1,620
68 (Specifications & ordering info)623
70 (Specifications & ordering info)1,745
75 (Specifications & ordering info)1,870
76 (Specifications & ordering info)695
80 (Specifications & ordering info)1,995
88 (Specifications & ordering info)803
90 (Specifications & ordering info)2,245
95 (Specifications & ordering info)2,370
96 (Specifications & ordering info)875
100 (Specifications & ordering info)2,495
108 (Specifications & ordering info)983
116 (Specifications & ordering info)1,055
124 (Specifications & ordering info)1,127
132 (Specifications & ordering info)1,199
140 (Specifications & ordering info)1,271
Ambient humidity (F3SJ-A____P14/P30)Operating: 35% to 85% (no condensation), Storage: 35% to 95%
Shock resistance (F3SJ-A____P14/P30)Malfunction: 100 m/s2, 1,000 times each in X, Y, and Z directions
Connection method (F3SJ-A____P14/P30)Connector method (M12, 8-pin)
Series connection (F3SJ-A____P14/P30)Time division emission by series connectionNumber of connections: up to 4 sets (F3SJ-A only) F3SJ-E, F3SJ-B and F3SJ-TS cannot be connected.Total number of beams: up to 400 beamsMaximum cable length for 2 sets: no longer than 15 m
Weight (packaged) (F3SJ-A____P14/P30)Calculate using the following expressions:(1) For F3SJ-A____14, weight (g) = (protective height) x 1.7 +α(2) F3SJ-A____30, weight (g) = (protective height) x 1.5 +αThe values forαare as follows:Protected height 245 to 596 mm: = 1,100 protected height 1,660 to 2,180 mm: = 2,400Protected height 600 to 1,130 mm: = 1,500 protected height 2,195 to 2,500 mm: = 2,600Protected height 1,136 to 1,658 mm: = 2,000
Withstand voltage (F3SJ-A____P14/P30)1,000 VAC 50/60 Hz, 1 min
Protection circuit (F3SJ-A____P14/P30)Output short-circuit protection, and power supply reverse polarity protection
Ambient temperature (F3SJ-A____P14/P30)Operating: -10 to 55°C (no icing), Storage: -30 to 70°C
F3SJ-A____14 Series (F3SJ-A____P14/P30)245 to 263
F3SJ-A____30 Series (F3SJ-A____P14/P30)245 to 395
Applicable standards (F3SJ-A____P14/P30)IEC 61496-1, EN 61496-1 UL 61496-1, Type 4 ESPE (Electro-Sensitive Protective Equipment)IEC 61496-2, CLC/TS 61496-2, UL 61496-2, Type 4 AOPD (Active Opto-electronic Protective Devices)IEC 61508-1 to -3, EN 61508-1 to -3 SIL3IEC 13849-1: 2006, EN ISO 13849-1: 2008 (PLe, Cat.4)UL 508, UL 1998, CAN/CSA C22.2 No.14, CAN/CSA C22.2 No.0.8
Degree of protection (F3SJ-A____P14/P30)IP65 (IEC 60529)
Vibration resistance (F3SJ-A____P14/P30)Malfunction: 10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps in X, Y, and Z directions
Insulation resistance (F3SJ-A____P14/P30)20 MΩ min. (at 500 VDC)
0.2 to 7 m (Specifications & ordering info)1,745 to 2,495
Application (Specifications & ordering info)Detection capability
Safety-related functions (F3SJ-A____P14/P30)Start interlock, restart interlock (Must be set with a setting tool when the muting function is used.)External device monitorMuting (Lamp burnout detection, override function included. F39-CN6 key cap for muting is required.)Fixed blanking (must be set by a setting tool)Floating blanking (must be set by a setting tool)
Not using incandescent lamp (F3SJ-A____P14/P30)100 m
Number of beams (Specifications & ordering info)Protective height (mm)2
Finger protection (Specifications & ordering info)Dia. 14 mm
Hand/arm protection (Specifications & ordering info)Dia. 30 mm
Operating ambient light intensity (F3SJ-A____P14/P30)Incandescent lamp: receiving-surface light intensity of 3,000 lx max., Sunlight: receiving-surface light intensity of 10,000 lx max.
Mutual interference prevention function (F3SJ-A____P14/P30)Interference light prevention algorithm, sensing distance change function
(Single-end connector cable (2 cables per set, for emitter and receiver))Laser pointer for F3SJ
Using incandescent lamp for external indicator output 1 (F3SJ-A____P14/P30)60 m
Using incandescent lamp for external indicator output 2 (F3SJ-A____P14/P30)40 m
7 m (Single-end connector cable (2 cables per set, for emitter and receiver))F39-JD7A
10 m (Single-end connector cable (2 cables per set, for emitter and receiver))F39-JD10A
15 m (Single-end connector cable (2 cables per set, for emitter and receiver))F39-JD15A
20 m (Single-end connector cable (2 cables per set, for emitter and receiver))F39-JD20A
Model (Single-end connector cable (2 cables per set, for emitter and receiver))F3SJ-A____P14
Emitter (Single-end connector cable (2 cables per set, for emitter and receiver))Auxiliary output 2: Turns ON when the point of 30,000 operating hours is reached (Operation mode can be changed with the setting tool.)External indicator output 2 : ON when lock-out for a basic system (Operation mode can be changed with the setting tool.)ON when muting/override for a muting system (Operation mode can be changed with the setting tool.)
Version (Single-end connector cable (2 cables per set, for emitter and receiver))Ver. 2
Receiver (Single-end connector cable (2 cables per set, for emitter and receiver))To 50 beams: 68 mA max., 51 to 100 beams: 90 mA max., 101 to 150 beams: 111 mA max.,151 to 180 beams: 128 mA max., 201 to 234 beams: 142 mA max.
OFF to ON (Single-end connector cable (2 cables per set, for emitter and receiver))1 set,0245 to 983: 44 ms to 70 ms max.1,055 or higher: 80 ms to 100 ms max.
Appearance (Single-end connector cable (2 cables per set, for emitter and receiver))Output
Sensor type (Single-end connector cable (2 cables per set, for emitter and receiver))Type 4 safety light curtain
Beam gap (P) (Single-end connector cable (2 cables per set, for emitter and receiver))9 mm
Lens diameter (Single-end connector cable (2 cables per set, for emitter and receiver))Diameter 5 mm
Operating range (Single-end connector cable (2 cables per set, for emitter and receiver))0.2 to 9 m (protective height 1,640 mm max.), 0.2 to 7 m (protective height 1,655 mm min.)(Depending on the setting tool, the detection distance can be shortened to 0.5 m.)
Safety category (Single-end connector cable (2 cables per set, for emitter and receiver))Safety purpose of category 4, 3, 2, 1, or B
Number of beams (n) (Single-end connector cable (2 cables per set, for emitter and receiver))26 to 180
Detection capability (Single-end connector cable (2 cables per set, for emitter and receiver))Opaque objects 14 mm in diameter
Startup waiting time (Single-end connector cable (2 cables per set, for emitter and receiver))2 s max. (2.2 s max. for series connection)
Using incandescent lamp for auxiliary output and external indicator output (F3SJ-A____P14/P30)45 m
Output operation mode (Single-end connector cable (2 cables per set, for emitter and receiver))Receiver
Safety outputs (OSSD) (Single-end connector cable (2 cables per set, for emitter and receiver))Two PNP transistor outputs, load current 300 mA max., residual voltage 2 V max. (except for voltage drop due to cable extension),allowable capacity load 2.2 μF, leak current 1 mA max.(This can be different from traditional logic (ON/OFF) because safety circuit is used.)
Protective height (PH) (Single-end connector cable (2 cables per set, for emitter and receiver))245 to 1,631 mm
Setting tool connection (Single-end connector cable (2 cables per set, for emitter and receiver))Connectable
Power supply voltage (Vs) (Single-end connector cable (2 cables per set, for emitter and receiver))24 VDC±20% (ripple p-p10% max.)
Current consumption(no load) (Single-end connector cable (2 cables per set, for emitter and receiver))Emitter
Effective aperture angle (EAA) (Single-end connector cable (2 cables per set, for emitter and receiver))Based on IEC 61496-2.Within±2.5° for both emitter and receiver when the detection distance is 3 m or over
Light source (emitted wavelength) (Single-end connector cable (2 cables per set, for emitter and receiver))Infrared LED (870 nm)
Auxiliary output 1(Non-safety output) (Single-end connector cable (2 cables per set, for emitter and receiver))One PNP transistor output, load current 300 mA max., residual voltage 2 V max. (except for voltage drop due to cable extension),leak current 1 mA max.
External indicator output(Non-safety output) (Single-end connector cable (2 cables per set, for emitter and receiver))Available indicatorsIncandescent lamp : 24 VDC, 3 to 7 WLED lamp: Load current 10 mA to 300 mA max., leak current 1 mA max.(To use an external indicator, an F39-JJ3N universal indicator cable or an F39-A01P-PAC dedicated external indicator kit is required.)
Response time(under stable light incident condition) (Single-end connector cable (2 cables per set, for emitter and receiver))ON to OFF
Auxiliary output 2(Non-safety output. Function for Basic System.) (Single-end connector cable (2 cables per set, for emitter and receiver))One PNP transistor output, load current 50 mA max., residual voltage 2 V max. (except for voltage drop due to cable extension),leak current 1 mA max.
