F3SG-4SRB0960-14-K

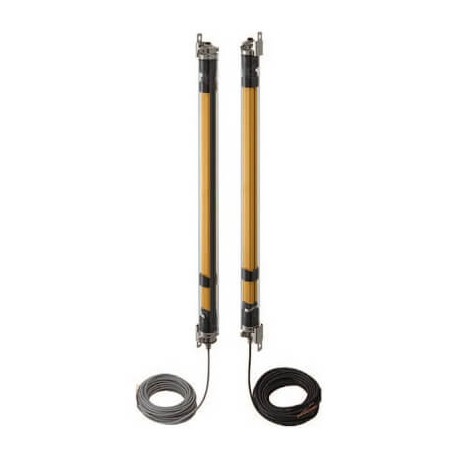

F3SG-4SRB0960-14-K F3G21121H F3SG4SRB096014K OMRON Safety Light Curtain, F3SG-SRB IP69K version, Type 4, 14 ..
$0.00USD
3583 in stock
Key Specifications
():XS5F-D521-DJ0-IL
Cascadable:
Beam spacing:10 mm
Key features:Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | XS5F-D521-DJ0-IL |
| Cascadable | |
| Beam spacing | 10 mm |
| Key features | Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment |
| Response time | 13 ms |
| Sensing method | Safety light curtain |
| Number of beams | 95 |
| Width of sensor | 60 mm |
| Height of sensor | 960 mm |
| With beam coding | |
| Connection method | Root connector (order separately) |
| Scope of delivery | Transmitter and receiver |
| Supply voltage DC | 19.2-28.8 V |
| Type of protection | Finger protection |
| Ambient temperature | -30-55 °C |
| Safety field height | 960 mm |
| Detection capability | 14 mm |
| Maximum safety range | 8 m |
| With muting function | |
| Communication option(s) | Bluetooth, IO-Link, USB |
| Overall length of sensor | 960 mm |
| Wavelength of the sensor | 870 nm |
| Degree of protection (IP) | IP65/IP67/IP69K |
| Minimum operating distance | 0.3 m |
| Suitable for safety functions | |
| Number of intermediate brackets | 0 |
| Number of fixed side-mount brackets | 0 |
| Type of switching output of the OSSD | PNP/NPN |
| Max. output current at protected output | 300 mA |
| Type of safety according to IEC 61496-1 | 4 |
| Number of adjustable side-mount brackets | 0 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
