F3SG-4RE0670P30

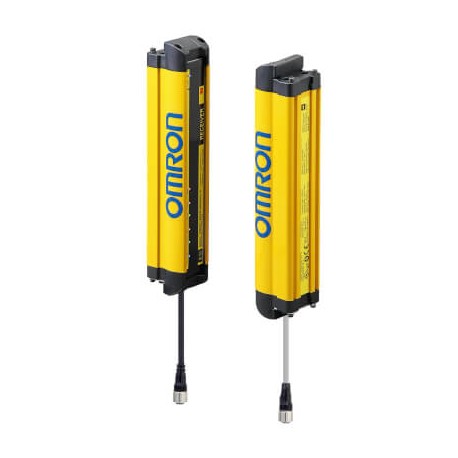

F3SG-4RE0670P30 F3SG6142B 673279 OMRON Basic safety barrier IP67 Type 4 Hand 670mm
$0.00USD
4777 in stock
Key Specifications
Beam gap:20 mm
Cascadable:
Key features:Fast response (ON/OFF applications), Simple wiring
Voltage type:DC
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Beam gap | 20 mm |
| Cascadable | |
| Key features | Fast response (ON/OFF applications), Simple wiring |
| Voltage type | DC |
| Width sensor | 35 mm |
| Response time | 7 ms |
| Overall length | 670 mm |
| Number of beams | 32 |
| Height of sensor | 35 mm |
| With beam coding | |
| Scope of delivery | Transmitter and receiver |
| Supply voltage DC | 19.2-28.8 V |
| Type of protection | Hand protection |
| Ambient temperature | -10-55 °C |
| Safety field height | 670 mm |
| Detection capability | 30 mm |
| Maximum safety range | 20 m |
| With muting function | |
| Wavelength of the sensor | 870 nm |
| Degree of protection (IP) | IP67 |
| Minimum operating distance | 0.3 m |
| Type of electric connection | Connector M12 |
| Suitable for safety functions | |
| Type of switching output of the OSSD | PNP |
| Max. output current at protected output | 300 mA |
| Type of safety according to IEC 61496-1 | 4 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
Product Description
Safety Sensor, F3SG-R Easy, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 670 mm, PNP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
