F3S-TGR-KM16-30

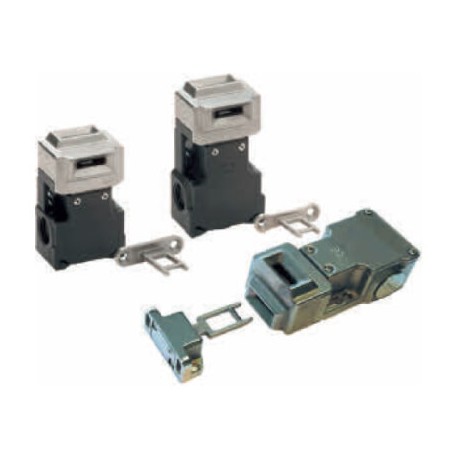

F3S-TGR-KM16-30 AA042784M 419037 OMRON FC Door Head Metal Body Plastic High 3xM20 3NC Slow
$61.17USD
193 in stock
Key Specifications
(Safety door switches with stainless steel head or full stainless steel body):Full stainless steel body
Head (Safety door switches with stainless steel head or full stainless steel body):Stainless steel 316
Item (Safety door switches with stainless steel head or full stainless steel body):F3S-TGR-KM15
PFHd (Safety door switches with stainless steel head or full stainless steel body):3.44 × 10-8
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (Safety door switches with stainless steel head or full stainless steel body) | Full stainless steel body |
| Head (Safety door switches with stainless steel head or full stainless steel body) | Stainless steel 316 |
| Item (Safety door switches with stainless steel head or full stainless steel body) | F3S-TGR-KM15 |
| PFHd (Safety door switches with stainless steel head or full stainless steel body) | 3.44 × 10-8 |
| Type (Safety door switches with stainless steel head or full stainless steel body) | Order code |
| MTTFd (Safety door switches with stainless steel head or full stainless steel body) | 356 years |
| Fixing (Safety door switches with stainless steel head or full stainless steel body) | 2 × M5, 40 mm distance |
| Material (Safety door switches with stainless steel head or full stainless steel body) | Body |
| M20 Gland (Safety door switches with stainless steel head or full stainless steel body) | Stainless steel 316 for F3S-TGR-KH16 types |
| Standards (Safety door switches with stainless steel head or full stainless steel body) | EN1088, IEC 60947-5-1, EN 60204-1, UL508EN ISO 13849-1: up to PLe1EN 62061: up to SIL31 |
| Vibration (Safety door switches with stainless steel head or full stainless steel body) | IEC 68-2-6, 10-55 Hz +1 Hz, Excursion: 0.35 mm, 1 octave/min |
| Conduit entry (Safety door switches with stainless steel head or full stainless steel body) | M20 |
| 3NCSlow action (Safety door switches with stainless steel head or full stainless steel body) | F3S-TGR-KH16-30 |
| for metal head (Safety door switches with stainless steel head or full stainless steel body) | F39-TGR-KAM |
| heavy flexible (Safety door switches with stainless steel head or full stainless steel body) | F39-TGR-KHF |
| Mounting screws (Safety door switches with stainless steel head or full stainless steel body) | Set of Torx safety screws (M4, 4 × 30 mm, 4 × 20 mm, 4 × 10 mm; incl. washers and Torx bit) |
| plastic flexible (Safety door switches with stainless steel head or full stainless steel body) | F39-TGR-KPF |
| Temperature Range (Safety door switches with stainless steel head or full stainless steel body) | -25 to 80°C |
| hygienic flexible (Safety door switches with stainless steel head or full stainless steel body) | F39-TGR-KHFH |
| Horizontal mounting (Safety door switches with stainless steel head or full stainless steel body) | F39-TGR-KF |
| Enclosure Protection (Safety door switches with stainless steel head or full stainless steel body) | IP67 |
| Utilization category (Safety door switches with stainless steel head or full stainless steel body) | AC15 A300 3 A |
| Thermal current (Ith) (Safety door switches with stainless steel head or full stainless steel body) | 5 A |
| Proof test interval (Life) (Safety door switches with stainless steel head or full stainless steel body) | 35 years |
| Mechanical reliability B10d (Safety door switches with stainless steel head or full stainless steel body) | 2.5 × 106operations at 100mA load |
| Actuator entry minimum radius (Safety door switches with stainless steel head or full stainless steel body) | 175 mm standard, 100mm flexible |
| Body dimensions (W × H × D) (Safety door switches with stainless steel head or full stainless steel body) | 54 × 88.4 × 34.5 mm |
| Maximum approach/Withdrawal speed (Safety door switches with stainless steel head or full stainless steel body) | 600 mm/s |
| Rated travel for positive opening (Safety door switches with stainless steel head or full stainless steel body) | 8 mm |
| Rated insulation/Withstand voltages (Safety door switches with stainless steel head or full stainless steel body) | 500 VAC/2,500 VAC |
Product Description
FC Door Head Metal Body Plastic High 3xM20 3NC Slow
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
This safety door switches use a stainless steel head or even a full stainless steel body to increase the robustness.
