EX-L211-J

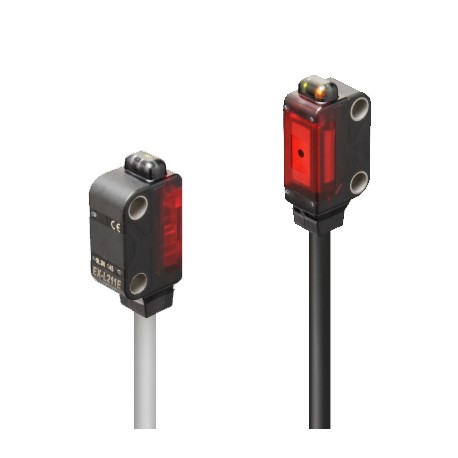

EX-L211-J PANASONIC Laser Trough beam, 1m, spot 6x4mm, NPN, connector M8
$0.00USD
4647 in stock
Key Specifications
Item:Specifications
Output:NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 26.4 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Details:Thru-beam type
Product:Amplifier Built-in Ultra-compact Laser Sensor
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Output | NPN open-collector transistor- Maximum sink current: 50 mA- Applied voltage: 26.4 V DC or less (between output and 0 V)- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
| Details | Thru-beam type |
| Product | Amplifier Built-in Ultra-compact Laser Sensor |
| Material | Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate |
| Accessory | MS-EXL2-2 (Mounting plate): 2 pcs. |
| Protection | IP67 (IEC) |
| Part Number | EX-L211-J |
| Product name | Amplifier Built-in Ultra-compact Laser Sensor EX-L200 |
| Repeatability | Perpendicular to sensing axis: 0.05 mm0.0020 inor less |
| Response time | 0.5 ms or less |
| Sensing range | 1 m3.281 ft |
| Product Number | EX-L211-J |
| Sensing object | Opaque object of ø2 mmø0.079 inor more |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Power indicator | Green LED (lights up when the power is ON) (incorporated on the emitter) |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Emitting element | Red semiconductor laser Class 1 (IEC / JIS/ FDA) (Note：This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH(Center for Devices and Radiological Health) under the FDA (Food and Drug Administration)(Maximum output: 390 μW, Peak emission wavelength: 655 nm0.026 mil) |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Ambient temperature | -10 to +55 ℃+14 to +131 ℉(No dew condensation or no icing condition),Storage: -30 to +70 ℃-22 to +158 ℉ |
| Current consumption | Emitter: 10 mA or lessReceiver: 10 mA or less |
| Operation indicator | Orange LED (lights up when the output is ON) (incorporated on the receiver for thru-beam type) |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type) |
| Sensitivity adjuster | Continuously variable adjuster (incorporated on the receiver) |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 indouble amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Output:Output operation | Light-ON / Dark-ON selectable by the output operation switching input |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Emission spot size (Typical) | Approx. 6 × 4 mm0.236 × 0.157 in(vertical × horizontal)(at a sensing distance of 1 m) |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Output:Short-circuit protection | Incorporated (short-circuit protection / inverse polarity protection) |
| Minimum sensing object (Typical) | Opaque object of ø0.3 mmø0.012 in(Note)Typical values when the sensitivity adjuster is optimally adjusted. |
| Repeatability (Typical)(perpendicular to sensing axis) | 0.01 mm0.0004 inor less(all area)(Note)Typical values when the sensitivity adjuster is optimally adjusted. |
