In Stock Hot Product
EX-KRM 50/32

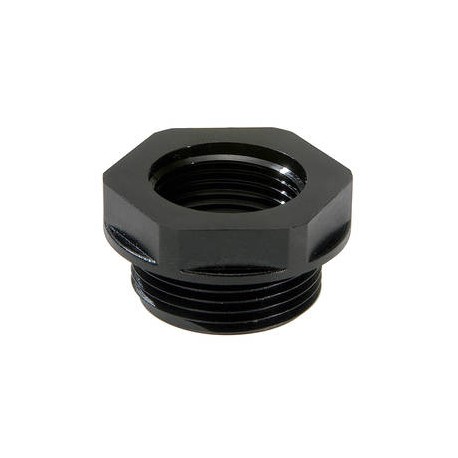

EX-KRM 50/32 10064734 WISKA Hexagonal reduction. Black PA "ATEX" IP66, thread ext. M50 threaded int. M32
$0.00USD
4962 in stock
Key Specifications
Form (Features):B
Type (Features):EX-KRM 50/32
Material (Features):Polyamide, fibre reinforced
Equipment (Features):Incl. connection thread gasket
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form (Features) | B |
| Type (Features) | EX-KRM 50/32 |
| Material (Features) | Polyamide, fibre reinforced |
| Equipment (Features) | Incl. connection thread gasket |
| Lead inner (Features) | 1,5 |
| Lead outer (Features) | 1,5 |
| Key width SW (Features) | 55 mm |
| Packing unit (Features) | 5 |
| Product Color (Features) | RAL 9005 |
| Ex-Certificate (Features) | IECEx, ATEX |
| Temp. range max (Features) | 75 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 21 mm |
| Ø inner thread (Features) | 32 |
| Ø outer thread (Features) | 50 |
| Protection class (Features) | IP66 / IP68 (5 bar 30 min) |
| Thread type inner (Features) | M |
| Thread type outer (Features) | M |
| Order no. RAL 9005 (Features) | 10064734 |
| Type of protection (Features) | Ex eb, Ex tb |
| Collar diameter (E) (Features) | 61 mm |
| ETIM-Classification (Features) | EC000938 |
| Material sealing gasket (Features) | EPDM |
| Length screw-in thread L (Features) | 14 mm |
Product Description
Ex-reduction adaptor, polyamide, M50-M32
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
