EX-19SA-PN

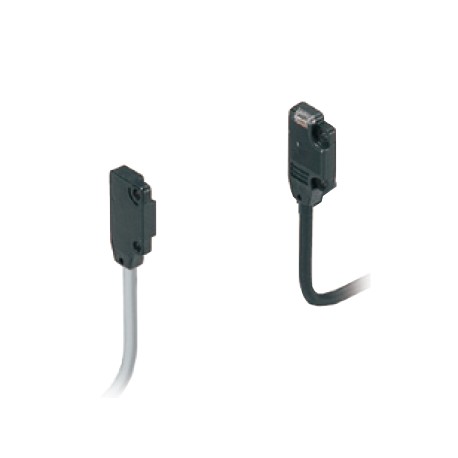

EX-19SA-PN PANASONIC Thru beam, front sensing, 1m, Light-ON, PNP, cable 2m
$0.00USD
3193 in stock
Key Specifications
EMC:EN 60947-5-2
Item:Specifications
Cable:0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
Output:PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EMC | EN 60947-5-2 |
| Item | Specifications |
| Cable | 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long |
| Output | PNP open-collector transistor- Maximum source current: 50 mA- Applied voltage: 30 V DC or less (between output and +V)- Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
| Weight | Net weight (each emitter and receiver): 20 g approxGross weight: 50 g approx |
| Details | Thru-beam･Narrow Beam [Front sensing] |
| Product | Ultra-slim Photoelectric Sensor |
| Material | Enclosure: Polyethylene terephthalateLens: Polyalylate |
| Accessory | Mounting screws: 1 set |
| Hysteresis | - |
| Protection | IP67 (IEC) |
| Part Number | EX-19SA-PN |
| Product name | Amplifier built-in Ultra-slim Photoelectric Sensor EX-10S |
| Response time | 0.5 ms or less |
| Sensing range | 1 m 3.281 ft |
| Product Number | EX-19SA-PN |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Cable extension | Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (emitter and receiver). |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Emitting element | Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated) |
| Pollution degree | 3 (Industrial environment) |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions for three times each |
| Ambient illuminance | Incandescent light: 3,000 lx at the light-receiving face |
| Ambient temperature | -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit |
| Current consumption | Emitter: 10 mA or lessReceiver: 10 mA or less |
| Min. sensing object | dia. 2.0 mm dia. 0.078 in opaque object |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in amplitude (20 G max.) in X, Y and Z directions for two hours each |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Incident beam indicator | - |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Output:Utilization category | DC-12 or DC-13 |
| Output:Short-circuit protection | Incorporated |
| Repeatability(perpendicular to sensing axis) | 0.05 mm 0.002 in or less |
