In Stock Hot Product
EWS-13122

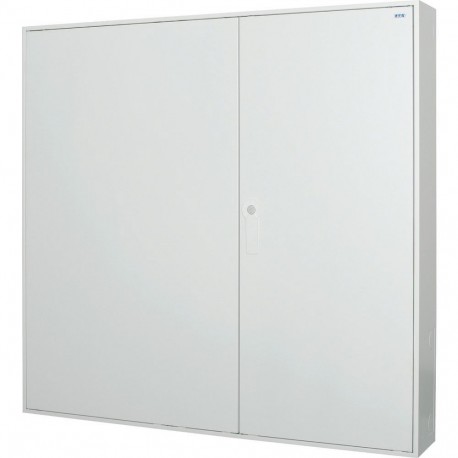

EWS-13122 174645 EATON ELECTRIC EWS-13122 EWS wall-mount enclosure for EP standard mounting units, IP43, IK0..
$0.00USD
4274 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):210 mm
Width (EF000008):1300 mm
Colour (EF000007):White
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 210 mm |
| Width (EF000008) | 1300 mm |
| Colour (EF000007) | White |
| Height (EF000040) | 1250 mm |
| Material (EF002169) | Steel |
| Couplable (EF001229) | Yes |
| With door (EF009169) | No |
| RAL-number (EF000116) | 9016 |
| With cover (EF007965) | No |
| EMC-version (EF001062) | No |
| Corner model (EF020814) | No |
| Freestanding (EF020363) | No |
| Pitched roof (EF009278) | No |
| Pre-stamping (EF001039) | No |
| Pole fastening (EF009582) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK09 |
| Number of doors (EF000122) | 2 |
| Number of locks (EF000123) | 1 |
| With glazed door (EF001089) | No |
| Transparent cover (EF011401) | No |
| With mounting plate (EF000118) | No |
| Intermediate mounting (EF022994) | No |
| With ventilation door (EF006279) | No |
| Degree of protection (IP) (EF005474) | IP43 |
| Floor standing wall model (EF015208) | No |
| Suitable for wall built-in (EF007536) | Yes |
| Suitable for wall mounting (EF000664) | Yes |
| Suitable for metrical mounting (EF005823) | Yes |
| Mounting plate depth-adjustable (EF006054) | No |
Product Description
EWS wall-mounting enclosure for EP standard components with a max. rated operational current of max. 250A, for direct mounting on the wall, IP43 degree of protection and IK09 impact resistance as per
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
