EVSF 63

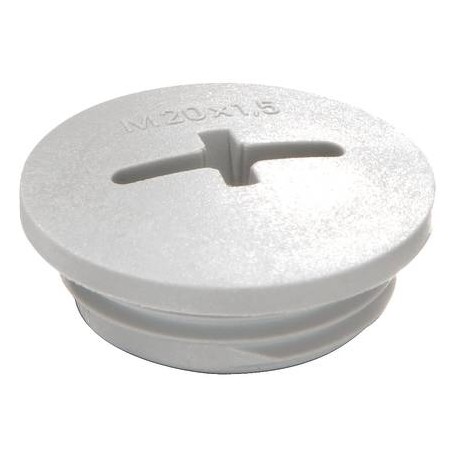

EVSF 63 10064673 WISKA Blind stopper "V0", light grey RAL 7035, PA IP56 thread M63
$0.00USD
3053 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EVSF 63
Advice (Features):with sealing IP66/IP68
Material (Features):Polyamide UL94-V0
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EVSF 63 |
| Advice (Features) | with sealing IP66/IP68 |
| Material (Features) | Polyamide UL94-V0 |
| Thread type (Features) | M |
| Packing unit (Features) | 25 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 960 °C |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 17 mm |
| Protection class (Features) | IP56 |
| Order no. RAL 7035 (Features) | 10064673 |
| ETIM-Classification (Features) | EC000032 |
| External diameter ED (Features) | 70 mm |
| Ø Connection thread D (Features) | 63 |
| Length screw-in thread L (Features) | 12 mm |
| Hazard level EN acc. 45545 (Features) | R22=HL3 / R23=HL3 / R24=HL3 |
Product Description
Stop end flame-retardant, polyamide, RAL 7035, M63
