In Stock Hot Product
EVPS 12/B

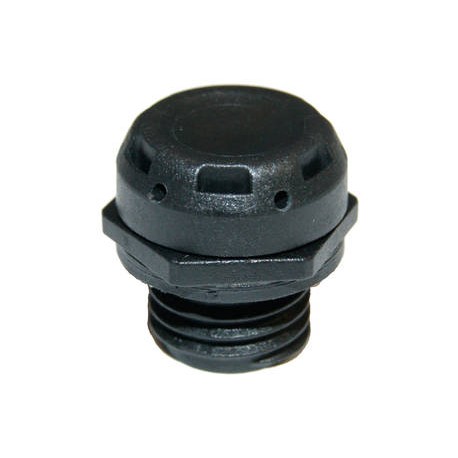

EVPS 12/B 10102370 WISKA VentPLUG black compensating cap RAL 9005, IP69K, M12 thread
$0.00USD
4022 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EVPS 12
Thread type (Features):M
Key width SW (Features):16 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EVPS 12 |
| Thread type (Features) | M |
| Key width SW (Features) | 16 mm |
| Packing unit (Features) | 10 |
| Product Color (Features) | RAL 9005 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 17,4 mm |
| Protection class (Features) | IP68 / IP69 |
| Airflow at 70mbar (Features) | 22 l/h |
| Material membrane (Features) | ePTFE |
| Tightening torque (Features) | 1 N m |
| Order no. RAL 9005 (Features) | 10102370 |
| Collar diameter (E) (Features) | 18 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide |
| Ø Connection thread D (Features) | 12 |
| Material sealing gasket (Features) | TPE |
| Length screw-in thread L (Features) | 8 mm |
Product Description
Pressure compensation unit, polyamide, RAL 9005, M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
