EVGK-3PHAS/N/8MODUL/LS
EVGK-3PHAS/N/8MODUL/LS EP-501070 Y7-501070 EATON ELECTRIC EVGK-3PHAS/N/8MODUL/LS
$0.00USD
4230 in stock
Key Specifications
Feature Name:Feature Value
Colour (EF000007):Grey
Length (EF001438):213 mm
Insulated (EF000019):Yes
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Colour (EF000007) | Grey |
| Length (EF001438) | 213 mm |
| Insulated (EF000019) | Yes |
| Module width (EF007504) | 17.8 mm |
| Cross section (EF000649) | 10 mm² |
| Number of poles (EF001391) | 4 |
| Number of phases (EF000351) | 3 |
| Can be cut to size (EF015250) | Yes |
| Rated surge voltage (EF002993) | 4 kV |
| Rated permanent current Iu (EF001389) | 63 A |
| Type of electric connection (EF003961) | Fork |
| Suitable for number of devices (EF007241) | 4 |
| Max. rated operation voltage Ue (EF007357) | 415 V |
| Width in number of modular spacings (EF002950) | 12 |
| Suitable for devices with N-conductor (EF007218) | No |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Conditioned rated short-circuit current Iq (EF001444) | 25 kA |
| Suitable for devices with auxiliary switch (EF007217) | No |
Product Description

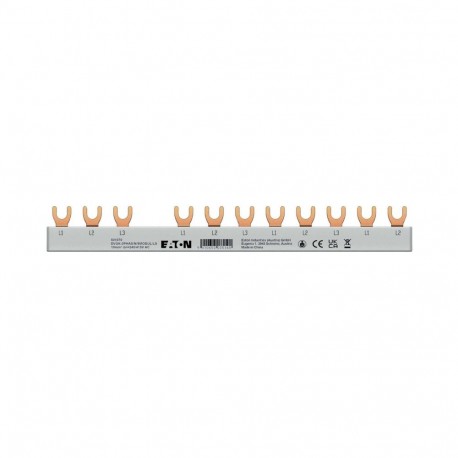

EVGK-3PHAS/N/8MODUL/LS, EVGK busbar fork, 3-phase, L1 - L2 - L3 - X + L1 - L2 - L3, shortenable version with end caps included, 4+8 module units, 10 mm²
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
