EV-T2SF-EM

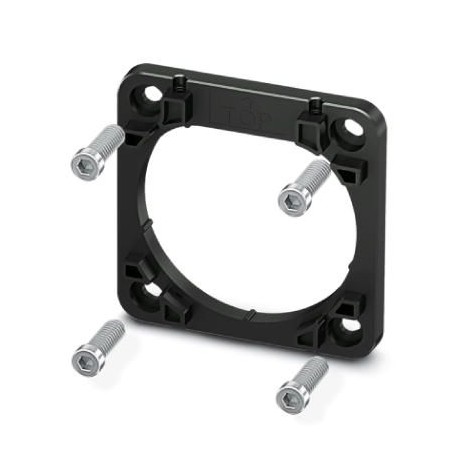

EV-T2SF-EM 1627637 PHOENIX CONTACT Fixing frame
$0.00USD
3574 in stock
Key Specifications
GTIN:4055626346106
Orderkey:1627637
(Material):No hazardous substances above threshold values
Catalog page:Page 750 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626346106 |
| Orderkey | 1627637 |
| (Material) | No hazardous substances above threshold values |
| Catalog page | Page 750 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Material (Design) | Plastic |
| Custom tariff number | 85389099 |
| China RoHS (Material) | Environmentally friendly use period: unlimited = EFUP-e |
| Design line (Mounting) | Easy Mount |
| Housing color (Mounting) | black |
| Depth (Product definition) | 11.5 mm |
| Type (Key Commercial Data) | Front protective cover screw connection |
| Width (Product definition) | 77.2 mm |
| Height (Product definition) | 77.4 mm |
| Customer variations (Mounting) | On request |
| Degree of protection (Dimensions) | |
| Product type (Key Commercial Data) | Fixing frame for Infrastructure Socket Outlet |
| Charging mode (Key Commercial Data) | Mode 3, Case B |
| Bore dimensions (Product definition) | 60 mm x 60 mm |
| Weight per Piece (excluding packing) | 60.070 g |
| Charging standard (Key Commercial Data) | Type 2 |
| Mounting hole diameter (Ambient conditions) | < 7.00 mm (Elongated hole, for spacing see hole pattern) |
| Standards/regulations (Key Commercial Data) | IEC 62196-2 |
| Ambient temperature (operation) (Dimensions) | -30 °C ... 50 °C |
| Possible mounting positions (Ambient conditions) | Front mounting, screwed on the back |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
| Screws included in the scope of delivery (Ambient conditions) | M5x20 cylinder head screws |
Product Description
CHARX connect, Clamping frame, Accessories, for installation in infrastructure sockets, Type 2, IEC62196-2, Front wall mounting, SE-Line Easy Mount, housing: black, Without logo
