EV-T2SC

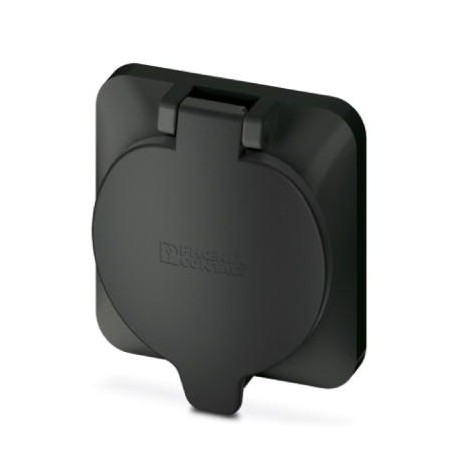

EV-T2SC 1405217 PHOENIX CONTACT Protective covers
$0.00USD
4921 in stock
Key Specifications
GTIN:4046356738507
Orderkey:1405217
(Material):No hazardous substances above threshold values
Catalog page:Page 751 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356738507 |
| Orderkey | 1405217 |
| (Material) | No hazardous substances above threshold values |
| Catalog page | Page 751 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Material (Design) | Plastic |
| Custom tariff number | 85389099 |
| China RoHS (Material) | Environmentally friendly use period: unlimited = EFUP-e |
| Design line (Mounting) | Standard |
| Housing color (Mounting) | black |
| Depth (Product definition) | 32.5 mm |
| Type (Key Commercial Data) | Rear protective cover screw connection |
| Width (Product definition) | 85 mm |
| Height (Product definition) | 93.7 mm |
| Customer variations (Mounting) | On request |
| Degree of protection (Dimensions) | IP54 |
| Product type (Key Commercial Data) | Self-closing protective cover for infrastructure socket outlet |
| Charging mode (Key Commercial Data) | Mode 3, Case B |
| Bore dimensions (Product definition) | 60 mm x 60 mm |
| Cover mechanism (Ambient conditions) | Self-closing |
| Weight per Piece (excluding packing) | 120.400 g |
| Degree of protection (IK) (Dimensions) | IK08 |
| Charging standard (Key Commercial Data) | Type 2 |
| Standards/regulations (Key Commercial Data) | IEC 62196-2 |
| Ambient temperature (operation) (Dimensions) | -30 °C ... 50 °C |
| Required mounting screws (Mechanical properties) | M5 thread |
| Possible mounting positions (Mechanical properties) | Front mounting, screwed on the front |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
Product Description
CHARX connect basic, Protective cover, Rectangular, Accessories, with automatic closing mechanism, for installation in infrastructure sockets, Type 2, IEC62196-2, Front wall mounting, M5 thread, housi
