EV-T2HPCC-DC500A-5,5M50ECBK11

Technical Specifications

Parameter	Value
GTIN	4055626958156
Orderkey	1101531
(Drawings)	Cable management is required in certain regions if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (USA) (IEC 61851-1).
(Material)	2x 8.8 mm Return hoses
Packing unit	1
(Dimensions)	IP20 (when not plugged in, the required IP24 degree of protection must be ensured by other means, e.g., by a holder, see accessories)
Note (Drawings)	NOTE: Cable management may be required.
Type (Drawings)	Without panel feed-through
ETIM 6.0 (eCl@ss)	EC002897
ETIM 7.0 (eCl@ss)	EC002897
Coolant (Material)	50 % water, 50 % glycol (recommended: Glysofor N)
Custom tariff number	85444290
(Ambient conditions)	2x NTC (DC power wires inside)
(Temperature sensors)	1050 W (Cable length: 6 m)
Type of sensor (Cable)	NTC
Product type (Drawings)	HPC-DC charging cable with cooled vehicle connector, cooled cable
Wiring class (Material)	Class 6
Charging mode (Drawings)	Mode 4
Housing material (Design)	Plastic
Cable structure (Material)	5 x 25 mm² + 7 x 0.75 mm²
Max. altitude (Dimensions)	5000 m (above sea level)
Cable resistance (Material)	≤ 0.00078 Ω/m (based on a power core, at an ambient temperature of 20°C)
Charging standard (Drawings)	CCS type 2
Flammability rating (Design)	V0
Shutdown temperature (Cable)	90 °C
Type of conductor (Material)	straight
eCl@ss 9.0 (Classifications)	27144705
Cooling technology (Drawings)	Water-glycol mixture as coolant in the vehicle connector and in the cable
Label (Mechanical properties)	8.9 mm x 28.9 mm (customer logo on request)
Material handle area (Design)	Soft plastic
Material mating face (Design)	Plastic
Flow rate (Temperature sensors)	2 l/min
Cooling hose diameter (Material)	1x 11.5 mm Supply hose
Standards/regulations (Drawings)	IEC 62196-3-1
Degree of protection (Dimensions)	IP54 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)
External sheath, color (Material)	black
Minimum bending radius (Material)	535.5 mm (15 x diameter)
Outer sheath, material (Material)	EVM-1 in accordance with EN 50620
(Requirements for a cooling unit)	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
External cable diameter (Material)	35.7 mm ±0.4 mm
Design line (Mechanical properties)	HPC
Resistor coding (Ambient conditions)	1500 Ω (between PE and PP)
Conductor length (Product definition)	5.5 m
Material surface of contacts (Design)	Ag
Relief pressure (Temperature sensors)	2.00 bar
Stripping length (Product definition)	140 mm ±10 mm
Cooling capacity (Temperature sensors)	600 W (Cable length: 3 m)
Flow temperature (Temperature sensors)	10 °C
Insertion force (Electrical properties)	< 100 N
Wiring standards/regulations (Material)	DIN EN 50620
Operating pressure (Temperature sensors)	1.00 bar ... 2.00 bar
Withdrawal force (Electrical properties)	< 100 N
Color handle area (Mechanical properties)	black
Mating face color (Mechanical properties)	black
Maximum charging power (Ambient conditions)	500 kW
Temperature monitoring (Ambient conditions)	2x NTC (replaceable, front DC contacts)
Ambient temperature (operation) (Dimensions)	-30 °C ... 40 °C
China RoHS (Requirements for a cooling unit)	Environmentally Friendly Use Period = 10;
Vehicle connector depth (Product definition)	285.20 mm
Vehicle connector width (Product definition)	72.00 mm
Communication interfaces (Ambient conditions)	CAN bus for reading the temperature and leakage sensor data
Number of power contacts (Ambient conditions)	3 (PE, DC+, DC-)
Vehicle connector height (Product definition)	181.20 mm
Number of signal contacts (Ambient conditions)	2 (CP, PP)
Type of signal transmission (Ambient conditions)	Pulse width modulation with modulated Powerline communication according to ISO/IEC 15118 / DIN SPEC 70121
Maximum permissible pressure (Temperature sensors)	4.00 bar
Note on the connection method (Ambient conditions)	cannot be disconnected
Insertion/withdrawal cycles (Electrical properties)	> 10000
Ambient temperature (storage/transport) (Dimensions)	-40 °C ... 60 °C
Rated current of power contacts (Ambient conditions)	500 A
Rated voltage for power contacts (Ambient conditions)	1000 V DC
Rated current for signal contacts (Ambient conditions)	2 A
Rated voltage for signal contacts (Ambient conditions)	30 V AC
Schematic diagramPin assignment of the Vehicle Connector (Drawings)
Schematic diagramCentral system: cooling unit and controller are positioned externally and supply multiple charging stations, each of which is equipped with a heat exchanger. The cooling is done actively using a chiller. (Drawings)
Schematic diagramThe Combined Charging System (CCS) principle - standard-compliant charging system for electric vehicles, which supports both conventional AC charging and fast DC charging. Both Vehicle Connectors fit into the CCS Vehicle Inlet. (Drawings)
Dimensional drawingEnsure that the vehicle connector is placed in an appropriate resting position that ensures a minimum protection rating of IP24 in accordance with IEC 61851-1 for the entire time between charging. Use the dimensions of the vehicle connector to create this type of resting position. Detailed specifications can also be found in the download area. (Drawings)

Product Description

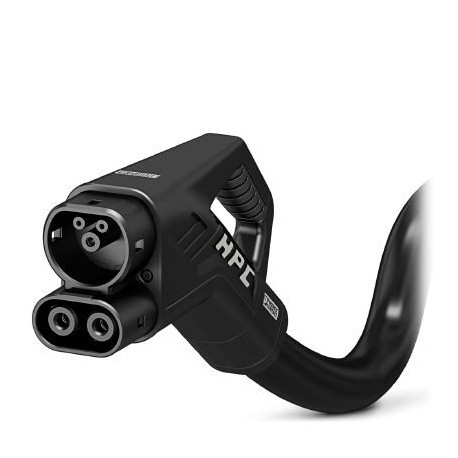

CHARX connect, HPC-DC charging cable, with cooled vehicle charging connector and cooled cable, for direct current (DC) charging of electric vehicles (EV), without feedthrough, with digital temperature

Key Features

Industrial grade quality
RoHS compliant
CE certified
1-year warranty

Technical Details

Dimensional drawingEnsure that the vehicle connector is placed in an appropriate resting position that ensures a minimum protection rating of IP24 in accordance with IEC 61851-1 for the entire time between charging. Use the dimensions of the vehicle connector to create this type of resting position. Detailed specifications can also be found in the download area.
