EV-RCM-C2-AC30-DC6

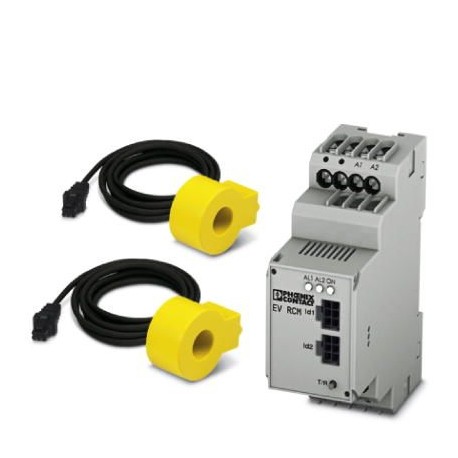

EV-RCM-C2-AC30-DC6 1622451 PHOENIX CONTACT Differential current monitoring
$0.00USD
3353 in stock
Key Specifications
GTIN:4055626040608
Orderkey:1622451
(Mounting):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Catalog page:Page 767 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626040608 |
| Orderkey | 1622451 |
| (Mounting) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 767 (C-2-2017) |
| Packing unit | 1 pc |
| (Dimensions) | IP30 (Inserts) |
| Country of origin | DE (Germany) |
| (Switching outputs) | 6 mA |
| Custom tariff number | 90303380 |
| China RoHS (Mounting) | Environmentally Friendly Use Period = 50 |
| Switching cycles (Inputs) | 10000 |
| Depth (Product definition) | 70.50 mm |
| Type (Key Commercial Data) | 2-channel |
| Width (Product definition) | 36 mm |
| Climatic class (Dimensions) | according to IEC 60271/-1/-2/-3 |
| Height (Product definition) | 90 mm |
| Max. switching current (Inputs) | 5 A (1 N/O contact each) |
| Conformance (Key Commercial Data) | CE-compliant |
| Degree of protection (Dimensions) | IP20 (Terminal blocks) |
| Frequency range (Connection data) | 45 Hz ... 60 Hz |
| Mounting position (Device supply) | any |
| Maximum switching voltage (Inputs) | 250 V |
| Product type (Key Commercial Data) | Residual current monitoring module (RCM) for AC charging controllers for private applications (EU/CN) |
| Charging mode (Key Commercial Data) | Mode 3 |
| Reload function (Switching outputs) | 3 switch-on attempts at intervals of 15 min. |
| Rated current In (Switching outputs) | 32 A |
| Weight per Piece (excluding packing) | 443.000 g |
| Control of charging contactor (Inputs) | Alarm relay 1 IΔn: AC and DC residual currents |
| Rated frequency fn (Switching outputs) | ≤ 2000 Hz |
| Supply voltage range (Connection data) | 100 V AC ... 240 V AC (nominal voltage range) |
| Charging standard (Key Commercial Data) | Type 2 |
| Tripping time for IN (Switching outputs) | < 500 ms |
| Residual current IΔn (Switching outputs) | 30 mA |
| Max. current consumption (Connection data) | 22 mA |
| Note regarding the switch contact (Inputs) | Quiescent current |
| Tripping time for IΔn (Switching outputs) | < 180 ms |
| Current measuring range (Switching outputs) | 50 A (45 Hz ... 50 Hz) |
| Nominal power consumption (Connection data) | < 0.5 W (No-load) |
| Number of contacts as N/O contacts (Inputs) | 1 |
| Standards/regulations (Key Commercial Data) | IECˆ61851-1 |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 80 °C |
| Tripping time for 5xIΔn (Switching outputs) | < 20 ms |
| Description of the input (Ambient conditions) | Plug-in; front |
| Response time for 2 x IΔn (Switching outputs) | < 70 ms |
| Connection method (Measuring current transducer) | Spring-cage connection |
| Nominal differential current (Switching outputs) | ± 300 mA (Peak) |
| Supply (Measuring range of the residual current) | via RCM module |
| Number of supported charging points (Key Commercial Data) | 1 |
| Conductor cross section AWG (Measuring current transducer) | 24 ... 14 |
| Connection method (Measuring range of the residual current) | Connector |
| Conductor cross section solid (Measuring current transducer) | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible (Measuring current transducer) | 0.2 mm² ... 2.5 mm² |
| Diameter of measuring coil (Measuring range of the residual current) | 15 mm |
Product Description
The Differential Residual Current Module is used to record AC and DC residual current at AC charging points. The higher-order protection device (e.g. residual current circuit breaker) is protected aga
