EV-GBSC-D6,5MM

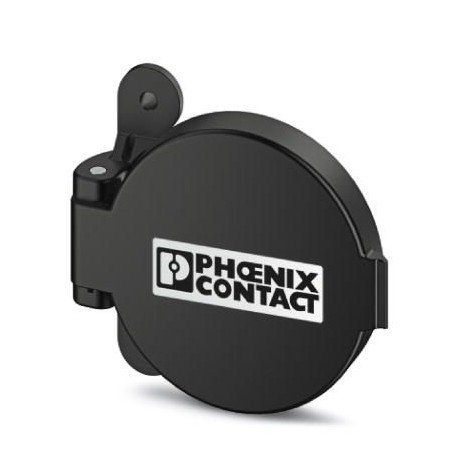

EV-GBSC-D6,5MM 1623888 PHOENIX CONTACT Protective covers
$0.00USD
4849 in stock
Key Specifications
GTIN:4055626202464
Note:Made to Order (non-returnable)
Orderkey:1623888
(Material):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626202464 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1623888 |
| (Material) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Packing unit | 1 pc |
| Label (Mounting) | 14.1 mm x 44.8 mm (customer logo on request) |
| Country of origin | DE (Germany) |
| Material (Design) | Plastic |
| Custom tariff number | 85389099 |
| China RoHS (Material) | Environmentally Friendly Use Period = 10; |
| (Key Commercial Data) | Type 2 |
| Design line (Mounting) | Standard |
| Housing color (Mounting) | black |
| Depth (Product definition) | 24.7 mm |
| Type (Key Commercial Data) | Rear protective cover screw connection |
| Width (Product definition) | 76.6 mm |
| Height (Product definition) | 76.6 mm |
| Degree of protection (Dimensions) | IP54 |
| Product type (Key Commercial Data) | Self-closing protective cover for infrastructure socket outlet |
| Charging mode (Key Commercial Data) | Mode 3, Case B |
| Bore dimensions (Product definition) | 60 mm |
| Cover mechanism (Ambient conditions) | Self-closing |
| Weight per Piece (excluding packing) | 180.000 g |
| Charging standard (Key Commercial Data) | GB/T |
| Standards/regulations (Key Commercial Data) | GB/T 20234.2 |
| Ambient temperature (operation) (Dimensions) | -30 °C ... 50 °C |
| Mounting hole diameter (Mechanical properties) | 6.50 mm (ø) |
| Possible mounting positions (Mechanical properties) | Front mounting, on the right or left of the Infrastructure Socket Outlet |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
Product Description
CHARX connect basic, Protective cover, round, Accessories, with automatic closing mechanism, for installation in infrastructure sockets, GB/T, Type 2, GB/T20234.2, IEC62196-2, Front wall mounting, hou
