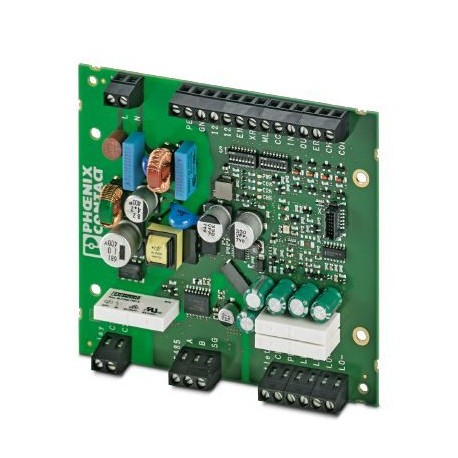

EV-CC-AC1-M3-CBC-SER-PCB
EV-CC-AC1-M3-CBC-SER-PCB 1622453 PHOENIX CONTACT AC charging controller
$0.00USD
3343 in stock
Key Specifications
GTIN:4055626039770
Orderkey:1622453
(Mounting):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Catalog page:Page 763 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626039770 |
| Orderkey | 1622453 |
| (Mounting) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 763 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| (Digital outputs) | 9.6 kbps ... 19.2 kbps (adjustable) |
| (Switching outputs) | 0.6 A (Per output; externally supplied) |
| Custom tariff number | 85371098 |
| China RoHS (Mounting) | Environmentally Friendly Use Period = 50 |
| (Key Commercial Data) | SAE J1772 |
| Depth (Product definition) | 20.00 mm |
| Type (Key Commercial Data) | as uncoated PCB |
| Width (Product definition) | 120 mm |
| Height (Product definition) | 108 mm |
| Bus system (Digital outputs) | RS-485 |
| Max. switching current (Inputs) | 2 A |
| Supply voltage (Connection data) | 230 V |
| Conformance (Key Commercial Data) | CE-compliant |
| Degree of protection (Dimensions) | IP00 |
| Frequency range (Connection data) | 50 Hz ... 60 Hz |
| Mounting position (Device supply) | any |
| Maximum switching voltage (Inputs) | 12 V (Internal supply) |
| Product type (Key Commercial Data) | AC charging controller for private and commercial applications (EU/CN) |
| Charging mode (Key Commercial Data) | Mode 3, Case B + C |
| Connection method (Digital outputs) | Screw connection |
| Minimum switching capacity (Inputs) | 24 VA |
| Control of locking actuator (Inputs) | Relay output LO+/- |
| Frequency range (Ambient conditions) | 50 Hz ... 60 Hz |
| Transmission speed (Digital outputs) | 9.6 kbps (Standard) |
| Weight per Piece (excluding packing) | 293.000 g |
| Control of charging contactor (Inputs) | Relay output C1.2 |
| Number of interfaces (Digital outputs) | 1 |
| Supply voltage range (Connection data) | 100 V AC ... 240 V AC (nominal voltage range) |
| Nominal current IN (Ambient conditions) | ≤ 1 mA |
| Connection technology (Switching outputs) | Screw connection |
| Connection method (RS-485 data interfaces) | Screw connection |
| Max. current consumption (Connection data) | 40 mA |
| Maximum output current (Switching outputs) | 0.5 A (Total current for all outputs; internally supplied) |
| Maximum output voltage (Switching outputs) | 30 V |
| Input voltage range U1 (Ambient conditions) | 0 V ... 3 V (Off) |
| Input voltage range U2 (Ambient conditions) | 9 V ... 15 V (On) |
| Nominal power consumption (Connection data) | < 1 W (No-load) |
| Standards/regulations (Key Commercial Data) | IEC 61851-1 |
| Ambient temperature (operation) (Dimensions) | -35 °C ... 70 °C |
| Data flow control/protocols (Digital outputs) | Modbus/RTU (slave) |
| Nominal input voltage UN (Ambient conditions) | 12 V |
| Number of digital inputs (Ambient conditions) | 5 |
| Permissible humidity (operation) (Dimensions) | 30 % ... 95 % |
| Nominal power consumption (Ambient conditions) | < 0.5 W (No-load) |
| Control of additional functions (Switching outputs) | 4 digital outputs |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section AWG (RS-485 data interfaces) | 24 ... 12 |
| Conductor cross section solid (RS-485 data interfaces) | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible (RS-485 data interfaces) | 0.2 mm² ... 2.5 mm² |
| Number of supported charging points (Key Commercial Data) | 1 |
| Locking release in the event of mains failure (Key Commercial Data) | Integrated release function of the locking actuator for disconnection of Infrastructure Plug and Infrastructure Socket Outlet |
Product Description
The EV-DC-AC1-M3-CBC-SER-PCB charge control system as a printed circuit board is used to charge electric vehicles in the three-phase alternating current network according to IEC 61851-1, mode 3. All c
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
