ETD-SL-1T-S

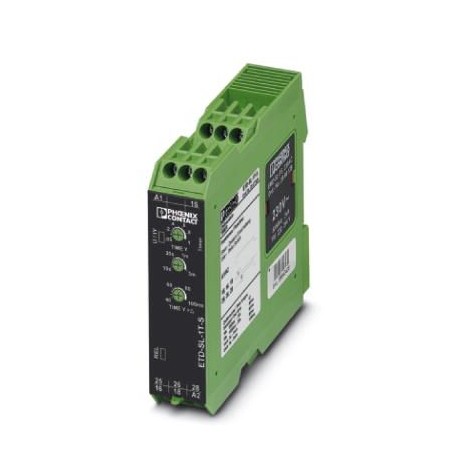

ETD-SL-1T-S 2867924 PHOENIX CONTACT Timer relay
$0.00USD
3408 in stock
Key Specifications
GTIN:4046356046947
Orderkey:2867924
(Coil side):1250 VA (5 A/250 V AC, module not aligned, ≥ 5 mm spacing)
Catalog page:Page 663 (IF-2009)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356046947 |
| Orderkey | 2867924 |
| (Coil side) | 1250 VA (5 A/250 V AC, module not aligned, ≥ 5 mm spacing) |
| Catalog page | Page 663 (IF-2009) |
| Depth (Note) | 113 mm |
| Packing unit | 1 pc |
| Width (Note) | 22.5 mm |
| (Dimensions) | -25 °C ... 40 °C (corresponds to UL 508) |
| Height (Note) | 90 mm |
| (Contact side) | Yellow LED (relay active) |
| Country of origin | AT (Austria) |
| Color (Contact side) | green |
| Custom tariff number | 85364900 |
| (Ambient conditions) | 24 V AC ... 230 V AC (see Power modules) |
| Output fuse (Coil side) | 5 A (fast-blow) |
| Contact type (Coil side) | 2 floating PDT contacts |
| Conformance (Contact side) | CE-compliant |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Noise immunity (Dimensions) | EN 61000-6-2 |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Conformance (Connection data) | CE-compliant |
| Function (Ambient conditions) | S: Star/delta startup |
| Status display (Contact side) | Green LED (POWER) |
| UL, USA/Canada (Contact side) | UL/C-UL listed UL 508 |
| Mounting position (Contact side) | any |
| Noise emission (Connection data) | EN 61000-6-4 |
| Noise immunity (Connection data) | EN 61000-6-2 |
| Nominal frequency (Contact side) | 50 Hz ... 60 Hz |
| UL, USA/Canada (Connection data) | UL/C-UL listed UL 508 |
| Recovery time (Ambient conditions) | 500 ms |
| Assembly instructions (Contact side) | on standard DIN rail NS 35 in accordance with EN 60715 |
| Weight per Piece (excluding packing) | 140.340 g |
| Maximum switching voltage (Coil side) | 250 V AC (in acc. with IEC 60664-1) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Mechanical service life (Contact side) | approx. 2x 107cycles |
| Low Voltage Directive (Connection data) | Conformance with LV directive 2006/95/EC |
| Rated insulation voltage (Contact side) | 300 V (acc. to EN 50178) |
| Time setting range (Ambient conditions) | 500 ms ... 3 min. (4 time end ranges) |
| Input voltage range (Ambient conditions) | 24 V DC (see Power modules) |
| Nominal power consumption (Contact side) | 2.5 VA (1 W) |
| Conductor cross section AWG max. (General) | 14 |
| Conductor cross section AWG min. (General) | 20 |
| Housing insulation material (Contact side) | Polyamide PA, self-extinguishing |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.5 mm² |
| Temperature sensitivity (Ambient conditions) | ≤ 0.01 %/K |
| Permissible humidity (operation) (Dimensions) | 15 % ... 85 % |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.5 mm² |
| Electromagnetic compatibility (Connection data) | Conformance with EMC Directive 2004/108/EC |
| Permissible humidity (operation) (Contact side) | 15 % ... 85 % |
| Interrupting rating (ohmic load) max. (Coil side) | 750 VA (3 A/250 V AC, module aligned, ≤ 5 mm spacing) |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Test voltage relay winding/relay contact (Contact side) | 4 kV |
| Flammability rating according to UL 94 (Connection data) | V0 |
Product Description
Relay temp. for star-triangle start, selectable power supply voltage through power module, 2 switching contacts.
