ETD-BL-1T-230-PT

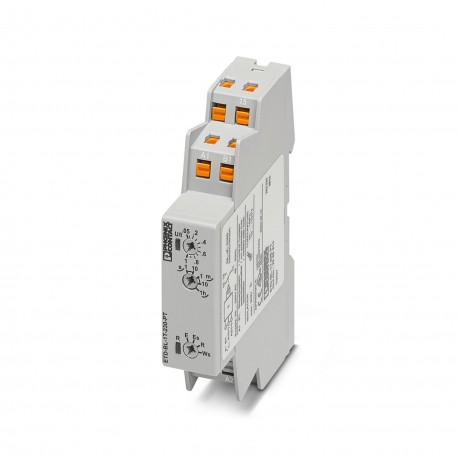

ETD-BL-1T-230-PT 2905814 PHOENIX CONTACT Timer relay
$0.00USD
4496 in stock
Key Specifications
GTIN:4055626003344
Orderkey:2905814
Catalog page:Page 272 (C-5-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626003344 |
| Orderkey | 2905814 |
| Catalog page | Page 272 (C-5-2017) |
| Packing unit | 1 pc |
| (Contact side) | Yellow LED (relay active) |
| Country of origin | AT (Austria) |
| (Connection data) | ≥ 100 ms (AC) |
| Color (Contact side) | gray |
| Custom tariff number | 85364900 |
| (Ambient conditions) | Ws: With single shot leading edge and control contact |
| Output fuse (Coil side) | 5 A (fast-blow) |
| Contact type (Coil side) | 1 floating PDT |
| Conformance (Contact side) | CE-compliant |
| Stripping length (General) | 8 mm |
| Connection method (General) | Push-in connection |
| Depth (Key Commercial Data) | 65.5 mm |
| Noise immunity (Dimensions) | EN 61000-6-2 |
| Width (Key Commercial Data) | 17.5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 88 mm |
| Conformance (Control contact) | CE-compliant |
| Function (Ambient conditions) | E: With switch-on delay |
| Status display (Contact side) | Green LED (POWER) |
| UL, USA/Canada (Contact side) | UL 508 Listed |
| Mounting position (Contact side) | any |
| Noise emission (Control contact) | EN 61000-6-3 |
| Noise immunity (Control contact) | EN 61000-6-2 |
| Nominal frequency (Contact side) | 48 Hz ... 63 Hz |
| UL, USA/Canada (Control contact) | UL 508 Listed |
| Connection name (Connection data) | Non-floating, terminals A1-B1 |
| Recovery time (Ambient conditions) | 100 ms |
| Assembly instructions (Contact side) | on standard DIN rail NS 35 in accordance with EN 60715 |
| Weight per Piece (excluding packing) | 71.290 g |
| Maximum switching voltage (Coil side) | 250 V AC (in acc. with IEC 60664-1) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Control pulse length (Connection data) | ≥ 50 ms (DC) |
| Mechanical service life (Contact side) | 15x 106cycles |
| Low Voltage Directive (Control contact) | Conformance with Low Voltage Directive 2006/95/EC (valid until 2016-04-19) / 2014/35/EU (valid from 2016-04-20) |
| Time setting range (Ambient conditions) | 50 ms ... 1 h (5 time end ranges) |
| Input voltage range (Ambient conditions) | 24 V DC ... 240 V DC -20 % ... +25 % |
| Conductor cross section AWG max. (General) | 14 |
| Conductor cross section AWG min. (General) | 26 |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Conductor cross section solid max. (General) | 2.5 mm² |
| Conductor cross section solid min. (General) | 0.14 mm² |
| Temperature sensitivity (Ambient conditions) | ≤ 0.01 %/K |
| Permissible humidity (operation) (Dimensions) | 15 % ... 85 % |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.14 mm² |
| Electromagnetic compatibility (Control contact) | Conformance with EMC Directive 2014/30/EU |
| Permissible humidity (operation) (Contact side) | 15 % ... 85 % |
| Interrupting rating (ohmic load) max. (Coil side) | 1250 VA (5 A / 250 V AC) |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Test voltage relay winding/relay contact (Contact side) | 4 kV |
| Flammability rating according to UL 94 (Control contact) | V0 |
Product Description
Compact multifunction timing relay with 4 functions and an adjustable time range (50 ms - 1 h), with push-in connection, 1 switched contact
