ESVG 16/B

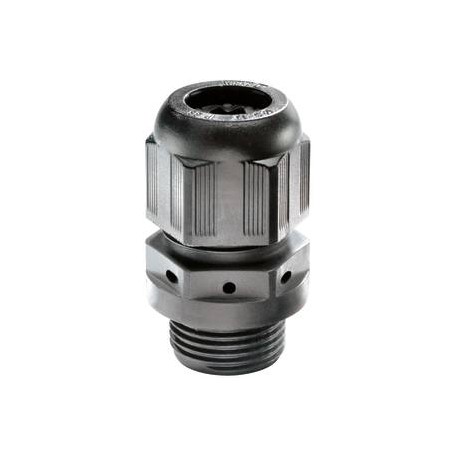

ESVG 16/B 10104413 WISKA VentGLAND cable glands, black RAL 9005, IP69K range from 4'5 to 10mm, thread M16
$0.00USD
3425 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESVG 16
Equipment (Features):Incl. connection thread gasket
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESVG 16 |
| Equipment (Features) | Incl. connection thread gasket |
| Thread type (Features) | M |
| Key width SW (Features) | 20 mm |
| Packing unit (Features) | 1 |
| Product Color (Features) | RAL 9005 |
| Glow wire test (Features) | 750 °C |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 37 mm - 42 mm |
| Protection class (Features) | IP68 / IP69 |
| Airflow at 70mbar (Features) | 52 l/h |
| Material membrane (Features) | ePTFE |
| Order no. RAL 9005 (Features) | 10104413 |
| Collar diameter (E) (Features) | 22 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide |
| Ø cable diameter max (Features) | 10 mm |
| Ø cable diameter min (Features) | 4,5 mm |
| Ø Connection thread D (Features) | 16 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 1,5 N m |
| Install. torques fitting (Features) | 3,5 N m |
| Length screw-in thread L (Features) | 9 mm |
Product Description
Pressure compensation cable gland, polyamide, RAL 9005, M16
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
