ESSVG 50

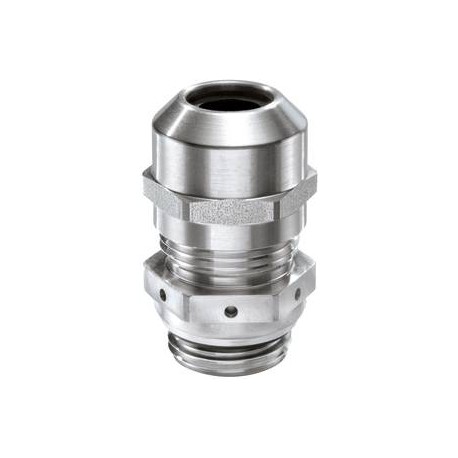

ESSVG 50 10069404 WISKA Stainless VentGLAND cable glands, AISI 303, IP69K range from 21 to 35mm, thread M50
$0.00USD
4288 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESSVG 50
Thread type (Features):M
Key width SW (Features):55 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESSVG 50 |
| Thread type (Features) | M |
| Key width SW (Features) | 55 mm |
| Packing unit (Features) | 1 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 64 mm - 77 mm |
| WISKA-Order no. (Features) | 10069404 |
| Protection class (Features) | IP68 / IP69 |
| Airflow at 70mbar (Features) | 225 l/h |
| Material membrane (Features) | ePTFE |
| Collar diameter (E) (Features) | 61 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Edelstahl A2 (1.4305) |
| Ø cable diameter UL (Features) | 24,3 mm - 33,4 mm |
| Ø cable diameter max (Features) | 35 mm |
| Ø cable diameter min (Features) | 21 mm |
| Ø Connection thread D (Features) | 50 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 30 N m |
| Install. torques fitting (Features) | 30 N m |
| Length screw-in thread L (Features) | 9 mm |
Product Description
Pressure compensation cable gland, stainless steel 1.4305, M50
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
