In Stock Hot Product
ESSVG-4 63

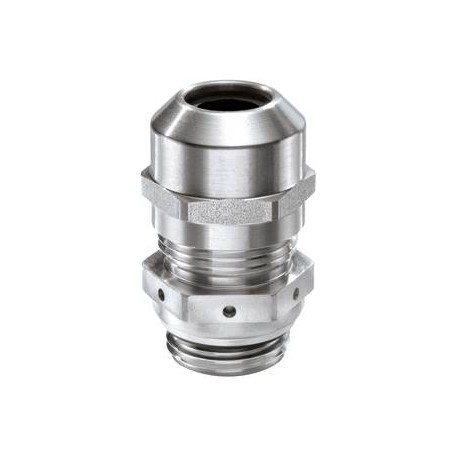

ESSVG-4 63 10069505 WISKA Stainless VentGLAND cable glands, AISI 316L, IP69K range from 34 to 48mm, M63 thre..
$0.00USD
3855 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESSVG-4 63
Thread type (Features):M
Key width SW (Features):68 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESSVG-4 63 |
| Thread type (Features) | M |
| Key width SW (Features) | 68 mm |
| Packing unit (Features) | 1 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 69 mm - 83 mm |
| WISKA-Order no. (Features) | 10069505 |
| Protection class (Features) | IP68 / IP69 |
| Airflow at 70mbar (Features) | 285 l/h |
| Material membrane (Features) | ePTFE |
| Collar diameter (E) (Features) | 75 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Stainless steel A4 (1.4404) |
| Ø cable diameter UL (Features) | 38,1 mm - 47,5 mm |
| Ø cable diameter max (Features) | 48 mm |
| Ø cable diameter min (Features) | 34 mm |
| Ø Connection thread D (Features) | 63 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 40 N m |
| Install. torques fitting (Features) | 40 N m |
| Length screw-in thread L (Features) | 10 mm |
Product Description
Pressure compensation cable gland, stainless steel 1.4404, M63
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
