In Stock Hot Product
ESSKV 63

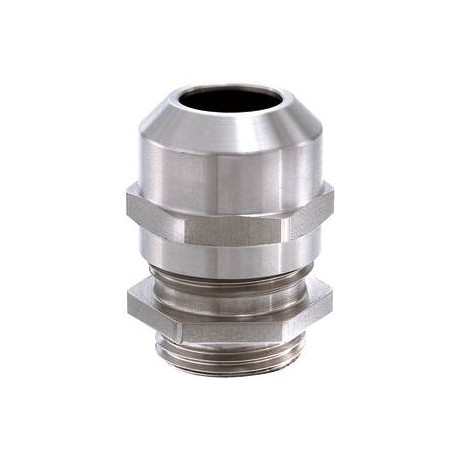

ESSKV 63 10069007 WISKA Stainless glands. AISI 303, IP68 range from 34 to 48mm, thread M63
$0.00USD
4582 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESSKV 63
Thread type (Features):M
Key width SW (Features):68 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESSKV 63 |
| Thread type (Features) | M |
| Key width SW (Features) | 68 mm |
| Packing unit (Features) | 1 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 56 mm - 67 mm |
| WISKA-Order no. (Features) | 10069007 |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 75 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Stainless steel A2 (1.4305) |
| Ø cable diameter UL (Features) | 38,1 mm - 47,5 mm |
| Ø cable diameter max (Features) | 48 mm |
| Ø cable diameter min (Features) | 34 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 63 |
| Material sealing gasket (Features) | EPDM |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 40 N m |
| Install. torques fitting (Features) | 40 N m |
| Length screw-in thread L (Features) | 10 mm |
Product Description
Cable gland, stainless steel, M63
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
