In Stock Hot Product

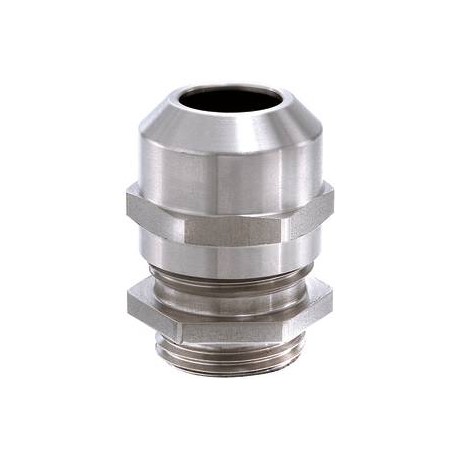

ESSKV 32 LT RW
ESSKV 32 LT RW 10105844 WISKA Stainless glands. AISI 303, IP68 -60oC, range from 13 to 21mm, thread M32, EN ..
$0.00USD
4336 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESSKV 32 LT RW
Thread type (Features):M
Key width SW (Features):36 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESSKV 32 LT RW |
| Thread type (Features) | M |
| Key width SW (Features) | 36 mm |
| Packing unit (Features) | 5 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -60 °C |
| Total length TL (Features) | 36 mm - 44 mm |
| WISKA-Order no. (Features) | 10105844 |
| Protection class (Features) | IP69, IP68 (5 bar 30 min) |
| Collar diameter (E) (Features) | 40 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Stainless steel A2 (1.4305) |
| Ø cable diameter max (Features) | 21 mm |
| Ø cable diameter min (Features) | 13 mm |
| Material clamping cage (Features) | Polyamide UL94-V0 |
| Ø Connection thread D (Features) | 32 |
| Material sealing gasket (Features) | Silicone |
| Length screw-in thread L (Features) | 8 mm |
| Hazard level EN acc. 45545 (Features) | R22=HL3 / R23=HL3 / R24=HL3 |
Product Description
Railway cable gland LowTemp, stainless steel, M32
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
