ESSKV 20 RW

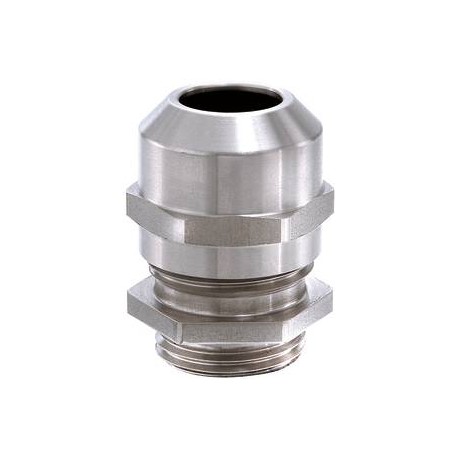

ESSKV 20 RW 10105834 WISKA Stainless glands. AISI 303, IP68 range from 6 to 13mm, thread M20, EN 45545
$0.00USD
4967 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESSKV 20 RW
Thread type (Features):M
Key width SW (Features):24 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESSKV 20 RW |
| Thread type (Features) | M |
| Key width SW (Features) | 24 mm |
| Packing unit (Features) | 10 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 29 mm - 37 mm |
| WISKA-Order no. (Features) | 10105834 |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 27 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Stainless steel A2 (1.4305) |
| Ø cable diameter max (Features) | 13 mm |
| Ø cable diameter min (Features) | 6 mm |
| Material clamping cage (Features) | Polyamide UL94-V0 |
| Ø Connection thread D (Features) | 20 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 8 N m |
| Install. torques fitting (Features) | 8 N m |
| Length screw-in thread L (Features) | 6 mm |
| Hazard level EN acc. 45545 (Features) | R22=HL3 / R23=HL3 / R24=HL3 |
Product Description
Railway cable gland, stainless steel, M20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
