ESSKV 12 RW
ESSKV 12 RW 10105832 WISKA Stainless glands. AISI 303, IP68 range from 4 to 7mm, thread M12, EN 45545
$0.00USD
3365 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESSKV 12 RW
Thread type (Features):M
Key width SW (Features):17 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESSKV 12 RW |
| Thread type (Features) | M |
| Key width SW (Features) | 17 mm |
| Packing unit (Features) | 10 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 23 mm - 30 mm |
| WISKA-Order no. (Features) | 10105832 |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 19 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Stainless steel A2 (1.4305) |
| Ø cable diameter max (Features) | 7 mm |
| Ø cable diameter min (Features) | 3 mm |
| Material clamping cage (Features) | Polyamide UL94-V0 |
| Ø Connection thread D (Features) | 12 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 4 N m |
| Install. torques fitting (Features) | 4 N m |
| Length screw-in thread L (Features) | 5 mm |
| Hazard level EN acc. 45545 (Features) | R22=HL3 / R23=HL3 / R24=HL3 |
Product Description

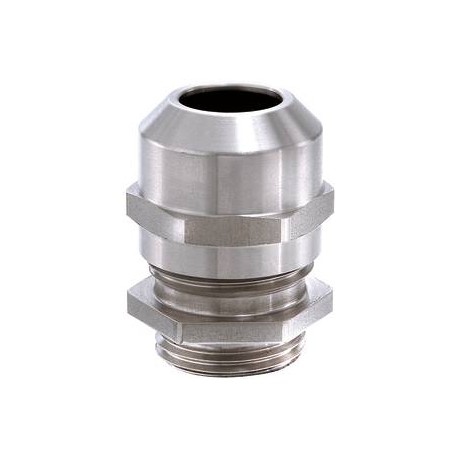

Railway cable gland, stainless steel, M12
