In Stock Hot Product
ESSKE-4 12

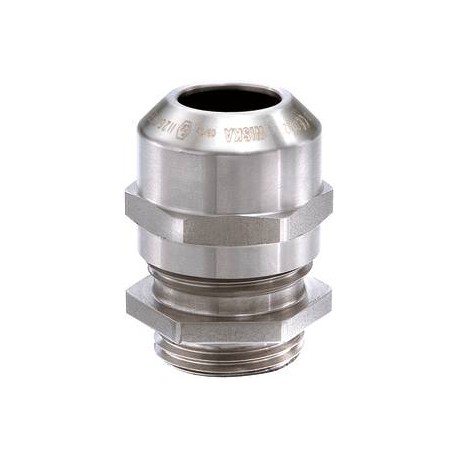

ESSKE-4 12 10069232 WISKA Stainless glands. "ATEX" AISI 316L, IP68 range from 4 to 7mm, thread M12
$0.00USD
3095 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESSKE-4 12
Thread type (Features):M
Key width SW (Features):17 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESSKE-4 12 |
| Thread type (Features) | M |
| Key width SW (Features) | 17 mm |
| Packing unit (Features) | 10 |
| Ex-Certificate (Features) | IECEx, ATEX |
| Temp. range max (Features) | 75 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 23 mm - 30 mm |
| WISKA-Order no. (Features) | 10069232 |
| Protection class (Features) | IP68 (5 bar 30 min), IP66 |
| Type of protection (Features) | Ex eb, Ex tb |
| Collar diameter (E) (Features) | 19 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Stainless steel A4 (1.4404) |
| Ø cable diameter UL (Features) | 4,1 mm - 6 mm |
| Ø cable diameter max (Features) | 7 mm |
| Ø cable diameter min (Features) | 4 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 12 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 4 N m |
| Install. torques fitting (Features) | 4 N m |
| Length screw-in thread L (Features) | 5 mm |
Product Description
Ex-cable gland, stainless steel 1.4404, M12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
