ESMKV 50

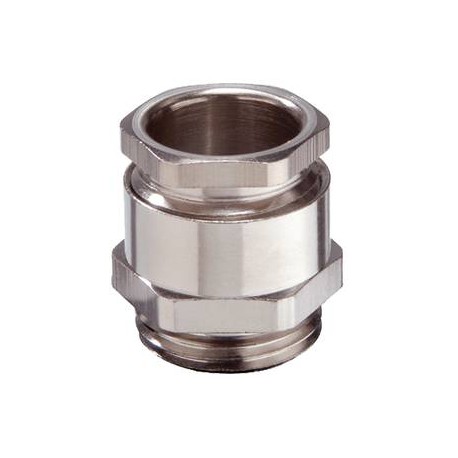

ESMKV 50 10062876 WISKA Metal hexagonal cable glands, IP54, range from 31 to 42mm, thread M50
$0.00USD
3675 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESMKV 50
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESMKV 50 |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Packing unit (Features) | 5 |
| Key width SW1 (Features) | 50 mm |
| Key width SW2 (Features) | 52 mm |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 80 °C |
| Temp. range min (Features) | -30 °C |
| Total length TL (Features) | 48 mm |
| Protection class (Features) | IP54 |
| Collar diameter E1 (Features) | 54 mm |
| Collar diameter E2 (Features) | 56 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 42 mm |
| Ø cable diameter min (Features) | 31 mm |
| Ø Connection thread D (Features) | 50 |
| Material sealing gasket (Features) | Soft rubber |
| Order no. nickel-plated (Features) | 10062876 |
| Length screw-in thread L (Features) | 9 mm |
Product Description
Cable gland hexagonal, brass nickel-plated, M50, with short thread
