ESKVS-L 16/GL

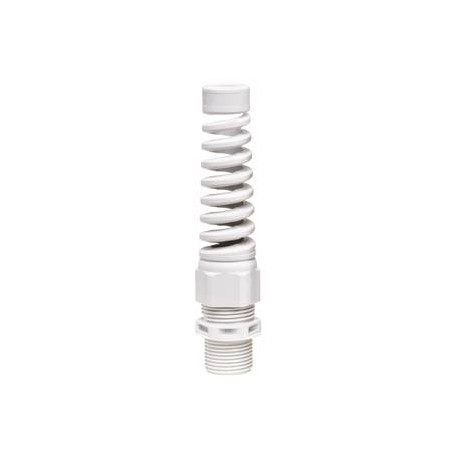

ESKVS-L 16/GL 10061211 WISKA PA cable glands, light grey RAL 7035 IP68, ent. Protec. flexible, 4.5 to 10mm r..
$0.00USD
4917 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESKVS-L 16
Thread type (Features):M
Key width SW (Features):20 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESKVS-L 16 |
| Thread type (Features) | M |
| Key width SW (Features) | 20 mm |
| Packing unit (Features) | 100 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 750 °C |
| Impact category (Features) | 3 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 88 mm - 94 mm |
| Protection class (Features) | IP69, IP68 (5 bar 30 min) |
| Order no. RAL 7035 (Features) | 10061211 |
| Collar diameter (E) (Features) | 22 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide |
| Ø cable diameter UL (Features) | 6 mm - 8,6 mm |
| Ø cable diameter max (Features) | 10 mm |
| Ø cable diameter min (Features) | 4,5 mm |
| Ø Connection thread D (Features) | 16 |
| Material sealing gasket (Features) | EPDM |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 3 N m |
| Install. torques fitting (Features) | 3,5 N m |
| Length screw-in thread L (Features) | 15 mm |
Product Description
Cable gland with bend protection, polyamide, M16, RAL 7035
