ESKVS 12/B

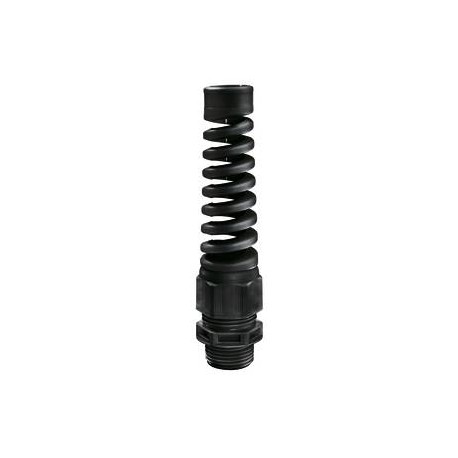

ESKVS 12/B 10061276 WISKA PA cable glands, black RAL 9005 IP68, ent. Protec. flexible, range from 3 to 7mm, ..
$0.00USD
4841 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESKVS 12
Thread type (Features):M
Key width SW (Features):16 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESKVS 12 |
| Thread type (Features) | M |
| Key width SW (Features) | 16 mm |
| Packing unit (Features) | 100 |
| Product Color (Features) | RAL 9005 |
| Glow wire test (Features) | 750 °C |
| Impact category (Features) | 2 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 72 mm - 77 mm |
| Protection class (Features) | IP69, IP68 (5 bar 30 min) |
| Order no. RAL 9005 (Features) | 10061276 |
| Collar diameter (E) (Features) | 18 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide |
| Ø cable diameter UL (Features) | 4,1 mm - 6 mm |
| Ø cable diameter max (Features) | 7 mm |
| Ø cable diameter min (Features) | 3 mm |
| Ø Connection thread D (Features) | 12 |
| Material sealing gasket (Features) | EPDM |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 2 N m |
| Install. torques fitting (Features) | 2 N m |
| Length screw-in thread L (Features) | 9 mm |
Product Description
Cable gland with bend protection, polyamide, M12, RAL 9005
