In Stock Hot Product
ESKV-F 32

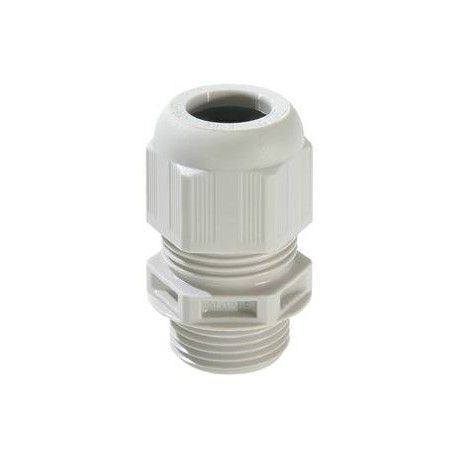

ESKV-F 32 10064630 WISKA PA cable glands "V0", light grey RAL 7035 IP68, range 13 to 21mm, thread M32
$0.00USD
3835 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESKV-F 32
Thread type (Features):M
Key width SW (Features):36 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESKV-F 32 |
| Thread type (Features) | M |
| Key width SW (Features) | 36 mm |
| Packing unit (Features) | 25 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 960 °C |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 42 mm - 51 mm |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Order no. RAL 7035 (Features) | 10064630 |
| Collar diameter (E) (Features) | 40 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide, flame-retardant |
| Ø cable diameter max (Features) | 21 mm |
| Ø cable diameter min (Features) | 13 mm |
| Ø Connection thread D (Features) | 32 |
| Material sealing gasket (Features) | EPDM |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 4 N m |
| Install. torques fitting (Features) | 15 N m |
| Length screw-in thread L (Features) | 12 mm |
Product Description
Cable gland flame-retardant, polyamide, M32, RAL 7035
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
