In Stock Hot Product

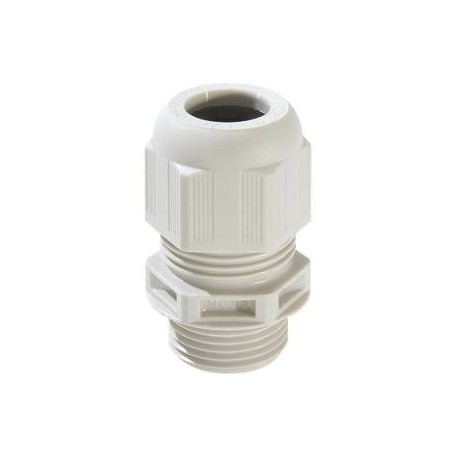

ESKV 50/GL RW
ESKV 50/GL RW 10105498 WISKA PA cable glands, light grey RAL 7035 IP68, range 21 to 35mm, thread M50, EN 455..
$0.00USD
4891 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESKV 50 RW
Equipment (Features):Incl. connection thread gasket
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESKV 50 RW |
| Equipment (Features) | Incl. connection thread gasket |
| Thread type (Features) | M |
| Key width SW (Features) | 55 mm |
| Packing unit (Features) | 4 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 960 °C |
| Impact category (Features) | 5 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 59 mm - 72 mm |
| Protection class (Features) | IP69, IP68 (5 bar 30 min) |
| Order no. RAL 7035 (Features) | 10105498 |
| Collar diameter (E) (Features) | 61 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | polyamide UL94-V0 |
| Ø cable diameter UL (Features) | 24,3 mm - 33,4 mm |
| Ø cable diameter max (Features) | 35 mm |
| Ø cable diameter min (Features) | 21 mm |
| Ø Connection thread D (Features) | 50 |
| Material sealing gasket (Features) | EPDM |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 30 N m |
| Install. torques fitting (Features) | 30 N m |
| Length screw-in thread L (Features) | 14 mm |
| Hazard level EN acc. 45545 (Features) | R22=HL3 / R23=HL3 / R24=HL3 |
Product Description
Railway cable gland, polyamide M50, RAL 7035 with short thread
